Lighting (17.00)
Rear Lights (17.03)
The rear light cluster is a sealed unit. If any light which fails to illuminate is traced back to the rear light cluster, replace the whole unit.
Specifications
Bulbs
| Rating | Type | |
|---|---|---|
| Rear light cluster | LED | |
| Rear side marker | 3W | W3W |
| Number plate | 5W | C5W |
| High Mounted Stop Lamp | LED |
Maintenance
Light Cluster
| Repair Operation Time (ROT) | ||
|---|---|---|
| Item | Code | |
| Rear Light Cluster Renew | LH | 17.03.AB |
| RH | 17.03.BB | |

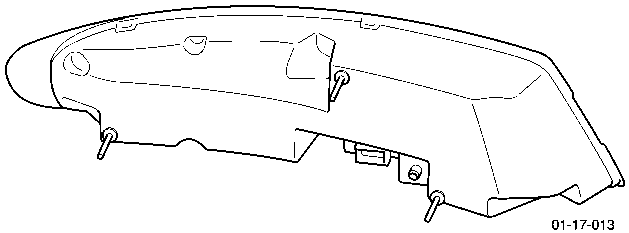

Remove
- Open the boot and remove the trim from around the light cluster mounts.
- Release and remove nuts (x3).
- Withdraw the rear light cluster unit.
- Disconnect the wiring harness plug.
Installation
- Place the rear light cluster unit to vehicle and connect the wiring harness plug.
- Insert the rear light cluster unit into position.
Ensure the rubber seal is in position. Tighten nuts (x3).
Ensure that the light cluster profile matches the surrounding panels.
Side Marker Units
Refer to ‘Front Lights (17.01)’ for all information on the rear side marker lights.
