Module Configuration (page 5 of 6)

Make: Aston Martin
Model: DB9 Factory Workshop Manual
Year: Issue 2, 2005
Section: Vehicle Control Modules

18 Electric distribution and electronic controlModule Configuration · page 5 of 6

Module Configuration (page 5 of 6) – diagram from the 18 Electric distribution and electronic control chapter of the Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005) factory manual.

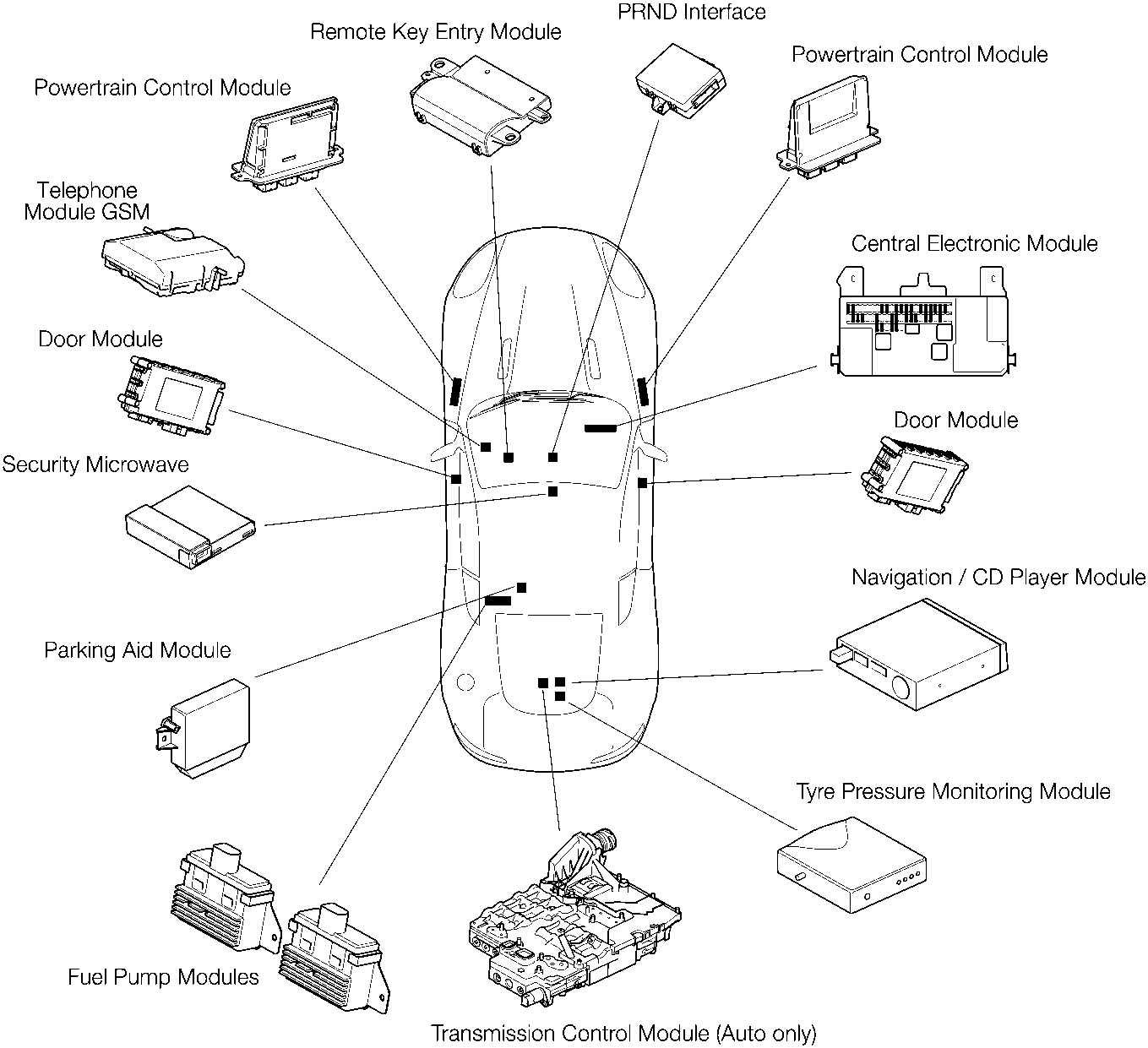

Diagram showing the locations of various vehicle control modules on a top-down view of the car, including Powertrain Control Module, Remote Key Entry Module, PRND Interface, Telephone Module GSM, Door Module, Security Microwave, Parking Aid Module, Fuel Pump Modules, Central Electronic Module, Navigation / CD Player Module, Tyre Pressure Monitoring Module, and Transmission Control Module (Auto only).
