Diagnostic Ports › Appendix & Glossary

20 Appendix and glossaryAppendix & Glossary

Appendix & Glossary

Diagnostic Ports

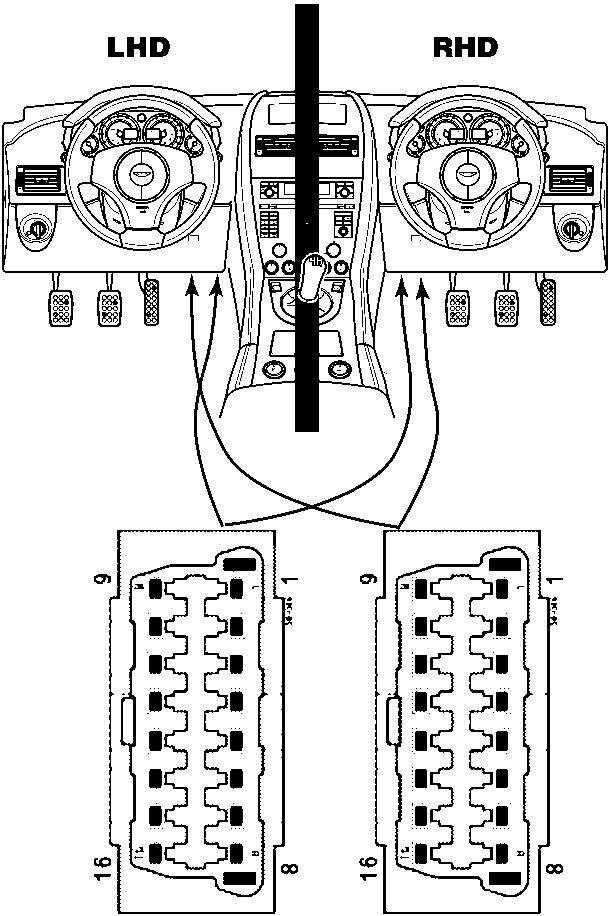

Diagnostic ports are provided for:

• OBD II
• Body - including

Fluids / Capacities

Capacities

	Europe	USA
Engine sump (incl. filter)	10.4 ltr	11.0 qts
Engine sump (excl. filter)	9.5 ltr	10.0 qts
Engine cooling system	15 ltr	15.5 qts
Screen washer reservoir	6.9 ltr	7.3 qts
Gearbox
Manual (including final drive and cooler)	4 ltr	4.2 qts
Automatic (including cooler)	9.7 ltr	10.2 qts
Final drive (Automatic) including cooler	1.6 ltr	1.7 qts
Transmission Cooler
Manual Gearbox	TBA	TBA
Automatic Gearbox	1.6 ltr	1.7 qts
Automatic Final Drive	0.7	0.7
Fuel tank	80 ltr	21.0 galls

Approx. 78 litres (17.2 UK Gallons) usable.

Recommended Fluids

Engine oil	Aus	Mobil 1 (0W-40)
	USA	Mobil 1 (0W-40) and (0W-30)

Do not mix Mobil 1 oil with any mineral oils.

Engine coolant

60% water, 40% Havoline OAT

Do not mix OAT coolant with any glycol based anti-freeze.

Automatic transmission fluid	Shell ATFM 1375-4
Automatic transmission final drive oil	Shell 'Transaxle' oil 75W/90
Manual gearbox oil / Final drive	Shell 'Transaxle' oil 75W/90
Brake / Clutch fluid	Castrol Super Response Dot 4
Power steering fluid	Texaco Cold Climate
A/C refrigerant	HFC134A.
Fuel	EU	95 RON Unleaded (Min.) or 98 RON Super Unleaded
	Aus	Premium Unleaded (95 RON Min.)
	USA	Premium Unleaded (95 RON), AKI 91 (Premium)
