Aston Martin V8 Vantage Factory Workshop Manual (2005-2010)02 · 01 Body system
02 · Body & interior

Bumpers: Specifications

Make
Aston Martin
Model
V8 Vantage Factory Workshop Manual
Year
2005–2010
Section
Bumpers › Specifications
01 Body systemSpecifications

Specifications

DescriptionNm
Front Bumper to bumper bracket4-5
Rear Bumper to Bumper Bracket2-3

Maintenance

Front Bumper Cover - Renew

ItemCode
Front Bumper Cover-Renew01.19.AA

Removal

  1. Raise vehicle on ramp.
  2. Remove front number plate and plinth (see Workshop Manual procedure 01.19.BD Licence Plate - Plinth Assembly - Front - Renew).
  3. Remove valance (see Workshop Manual procedure 01.19.AF Panel - Front Valance - Renew).
  4. Remove screws (x2) securing front of undertray to bumper (see Figure 1).

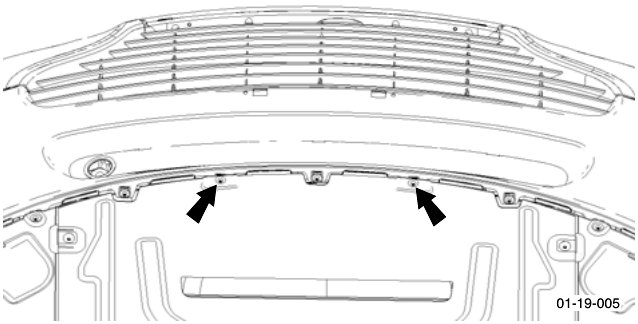

Front Bumper Cover with arrows pointing to clips

Figure 1

  1. Remove screws (x5) LH front wheel arch liner to bumper.
  2. Remove screws (x5) RH front wheel arch liner to bumper.
  3. Remove bolts (x3) securing LH air box to mounting brackets.
  4. Remove bolts (x3) securing RH air box to mounting brackets.

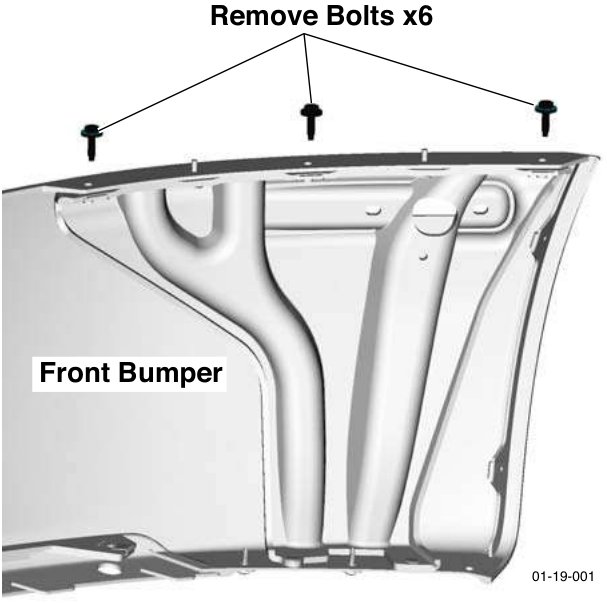

Front Bumper with six bolts labeled 'Remove Bolts x6'

Figure 2

  1. Remove bolts (x6) securing bumper to front wing (see Figure 2).
  1. With assistance, release bumper from clips (x2) and remove bumper (see Figure 3).

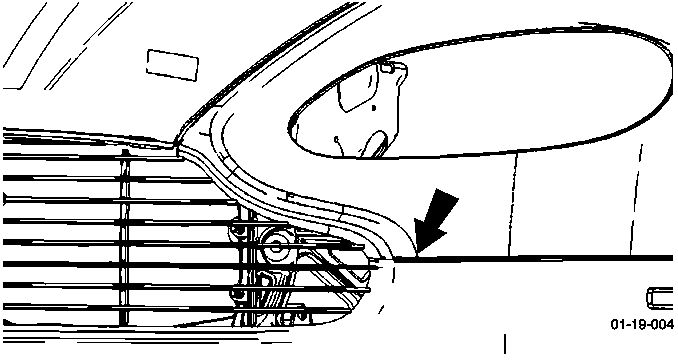

Front Bumper with arrow pointing to clip

Figure 3

Installation

  1. Install mesh (clips x8).
  2. With assistance position bumper and secure in clips (x2).
  3. Install bolts (x6) bumper to front wing.
  4. Install bolts (x3) securing RH air box to mounting brackets.
  5. Install bolts (x3) securing LH air box to mounting brackets.
  1. Install screws (x5) LH front wheel arch liner to bumper.
  2. Install screws (x5) RH front wheel arch liner to bumper.
  3. Install screws (x2) securing front undertray to bumper.

11. Remove mesh (clips x8).
