Mirrors: Specifications

Make
Aston Martin
Model
V8 Vantage Factory Workshop Manual
Year
2005–2010
Section
Mirrors › Specifications
01 Body systemSpecifications

Specifications

Torque Figures
DescriptionNm
Mirror Mounting20-25

Maintenance

RH Door Mirror Assembly - Renew

Repair Operation Time (ROT)
ItemRHCode
Door Mirror Assembly-Renew01.08.GC

Removal

  1. Remove door trimboard (see Workshop Manual procedure 01.05.CB Trimboard Assembly - Door - Remove for Access and Refit).
  2. Lift rear of fixed window, remove rubber surround at top and pull out window.
  3. Remove the door mirror rubber cheater panel.

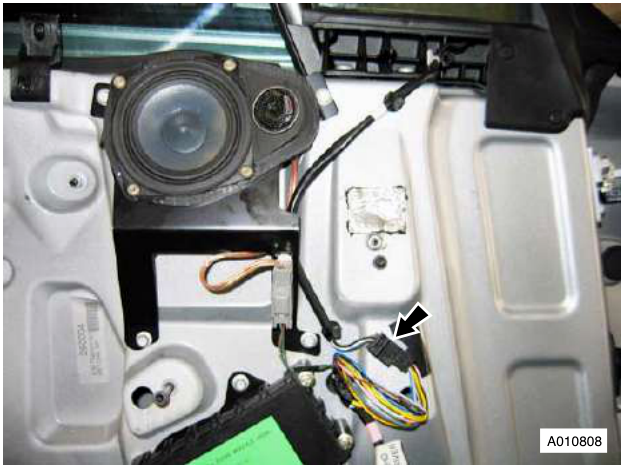

  4. Disconnect multiplug and release harness from fir tree clips (x2) (see Fig 1).
Interior view of door panel showing speaker, wiring harness with multiplug connector, and mounting points.

Figure 1

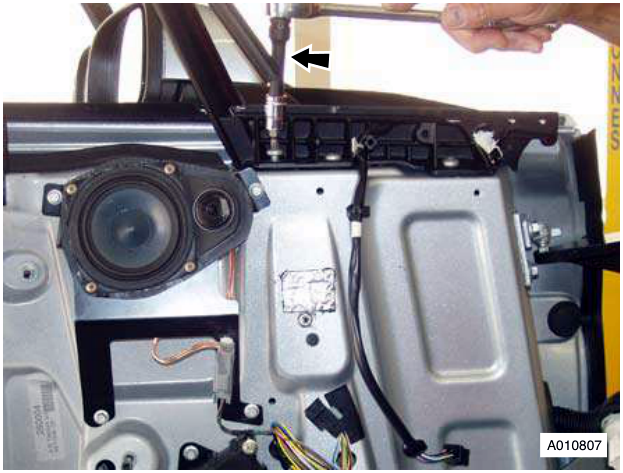

  1. Remove bolts (x4) and remove mirror assembly (see Fig 2).
Close-up view of a hand using a tool to remove a bolt from the mirror mounting bracket inside the door panel.

Figure 2

Installation

  1. Position mirror and install and torque tighten bolts (x4).
  2. Connect multiplug and secure harness fir tree clips (x2).
  3. Install rubber mirror cheater panel and insert rubber guttering.
  4. Install fixed window, ensure rubber surround is correctly installed.
  5. Install door trimboard (see Workshop Manual procedure 01.05.CB Trimboard Assembly - Door - Remove for Access and Refit).

LH Door Mirror Assembly - Renew

Repair Operation Time (ROT)
ItemLHCode
Door Mirror Assembly-Renew01.08.GD

Removal

  1. Remove door trimboard (see Workshop Manual procedure 01.05.CB Trimboard Assembly - Door - Remove for Access and Refit).
