03 EngineMaintenance

Maintenance

Starter Motor-Renew

Repair Operation Time (ROT)
ItemCode
Starter motor-Renew03.06.AB

Removal

  1. Remove RH exhaust manifold (see Workshop Manual procedure 09.00.CA Manifold - Exhaust - RH - Renew).
  2. Switch battery isolation switch ‘OFF’.
  3. Remove battery cable from starter motor.
  4. Disconnect solenoid multiplug from starter motor (see Figure 1).

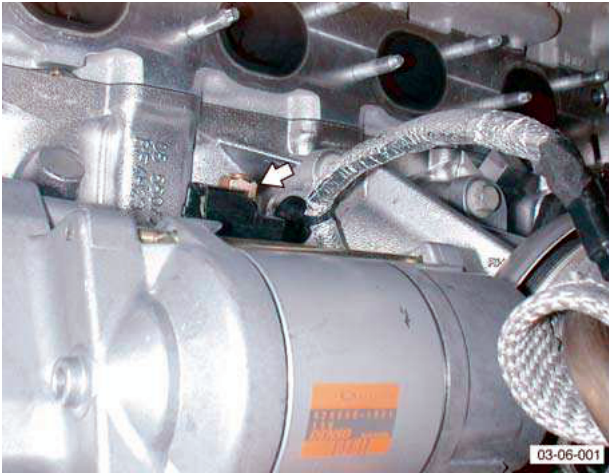

Starter motor with disconnected solenoid multiplug and battery cable.
  1. Remove starter motor bolts (x2) (see Figure 2).

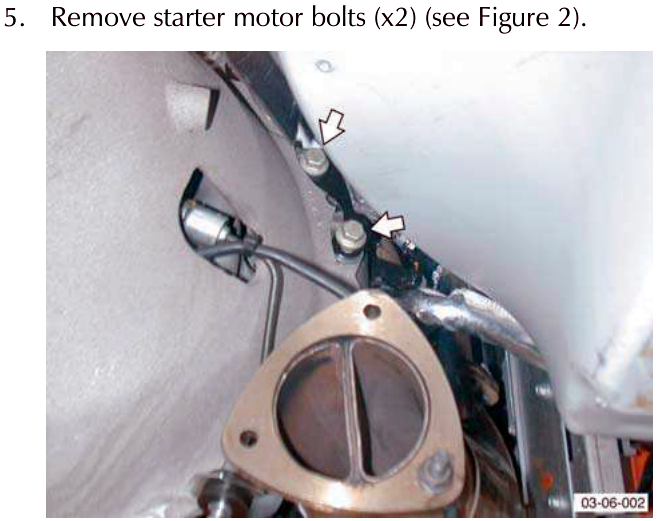

Close-up of starter motor bolts being removed.

Installation

  1. Install starter motor bolts (x2).
  2. Connect solenoid multiplug to starter motor.
  3. Install battery cable from starter motor.
  4. Switch battery isolation switch ‘ON’.
  5. Install RH exhaust manifold (see Workshop Manual procedure 09.00.CA Manifold - Exhaust - RH - Renew).
