Automatic Control System › Install
07 TransmissionInstall
  1. Disconnect Drive 'D' switch multiplug (see Figure 2).

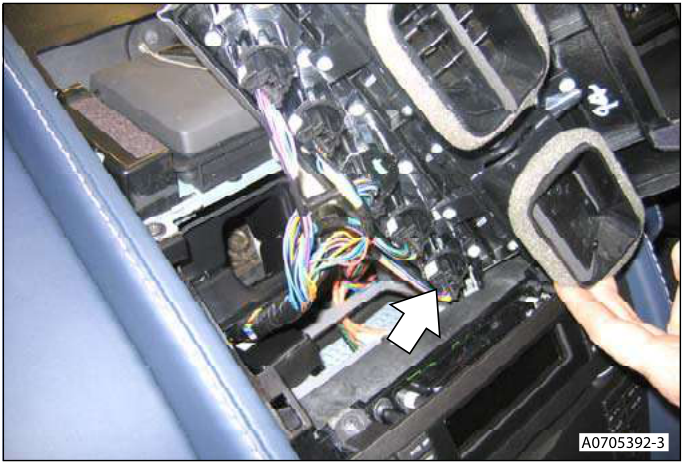

Interior view showing the Drive 'D' switch multiplug being disconnected from the upper centre panel.

Figure 2

  1. Depress clips and remove Drive 'D' switch from upper centre panel.

Install

  1. Align Drive 'D' switch and secure in upper centre panel.
  2. Position upper centre panel, connect multiplug, install upper centre panel.
  3. Battery isolation switch ON.

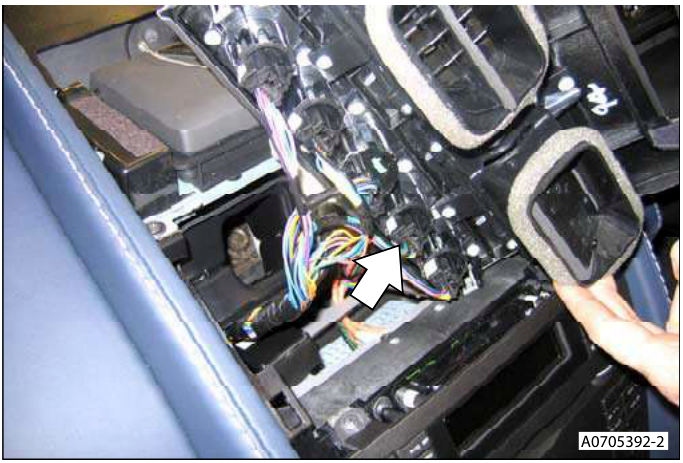

Interior view showing the Neutral 'N' switch multiplug being disconnected from the upper centre panel.

Figure 2

  1. Disconnect Neutral 'N' switch multiplug (see Figure 2).
  2. Depress clips and remove Neutral 'N' switch from upper centre panel.

Install

  1. Align Neutral 'N' switch and secure in upper centre panel.
  2. Position upper centre panel, connect multiplug, install upper centre panel.
  3. Battery isolation switch ON.

Sportshift Neutral Switch-Renew-Sportshift Only

Repair Operation Time (ROT)
ItemCode
Sportshift Neutral Switch-Renew07.05.AG

Removal

  1. Battery isolation switch OFF.
  2. Remove upper centre panel using special tool (501 115) to hook into either one of the two centre air vents (see Figure 1).
Close-up view showing a hand using a special tool (501 115) to remove the upper centre panel by hooking it into one of the two centre air vents.

Figure 1

Sportshift Reverse Switch-Renew-Sportshift Only

Repair Operation Time (ROT)
ItemCode
Sportshift Reverse Switch-Renew07.05.AH

Removal

  1. Battery isolation switch OFF.
  2. Remove upper centre panel using special tool (501 115) to hook into either one of the two centre air vents (see Figure 1).
Close-up view showing a hand using a special tool (501 115) to remove the upper centre panel by hooking it into one of the two centre air vents.

Figure 1
