  1. Disconnect the two breather pipes from the air intake pipe.

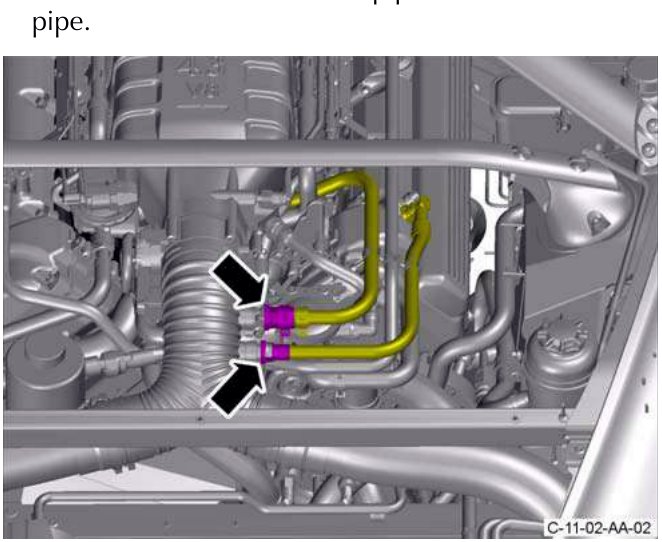

    2. Air intake pipe with breather pipes disconnected

    Figure 2

  2. Install sealing caps into the open ports.
  3. Release the clip that attaches the air intake pipe to the throttle body.

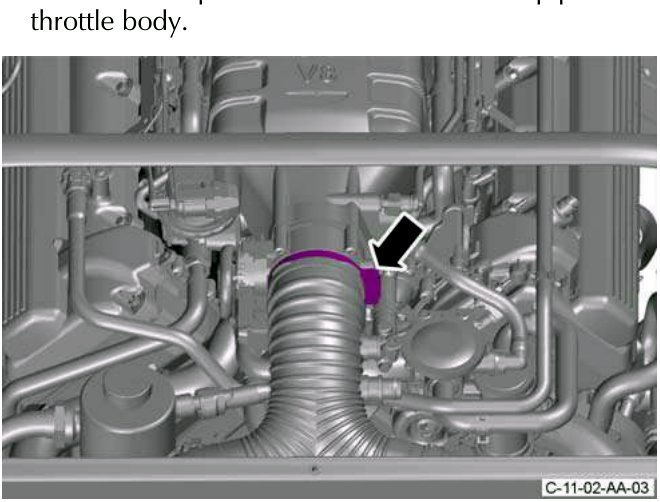

    4. Air intake pipe clip released from throttle body

    Figure 3

  4. Release the clip that attaches the air intake pipe to the outlet pipe for the right side air cleaner.

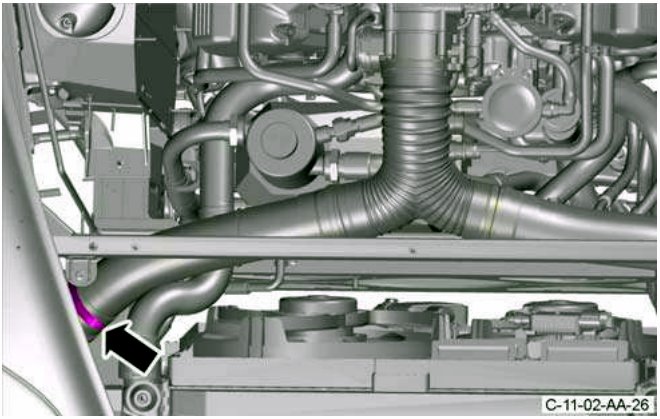

    5. Air intake pipe clip released from outlet pipe

    Figure 4

  5. Disconnect the air intake pipe from the outlet pipe for the right side air cleaner and move it away.

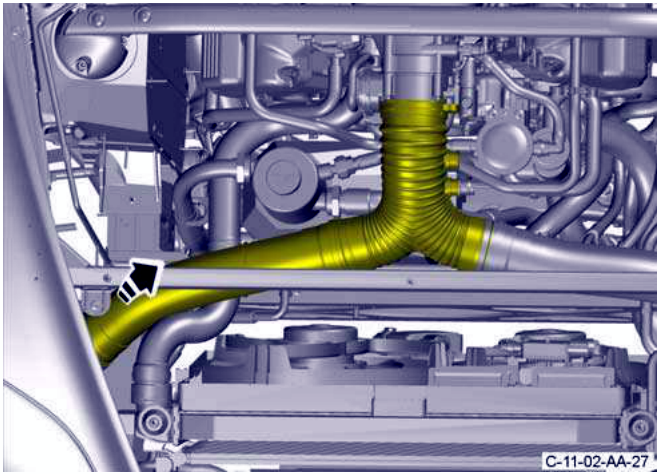

    6. Air intake pipe disconnected from outlet pipe

    Figure 5

  6. Disconnect the two oil breather pipes from the oil tank.

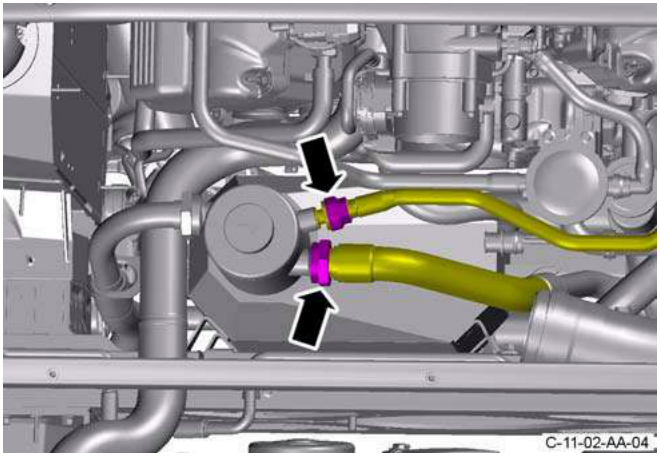

    7. Oil breather pipes disconnected from oil tank

    Figure 6

  7. Install sealing caps into the open ports.
  8. Loosen the union that attaches the top oil pipe to the oil tank and move the pipe away.

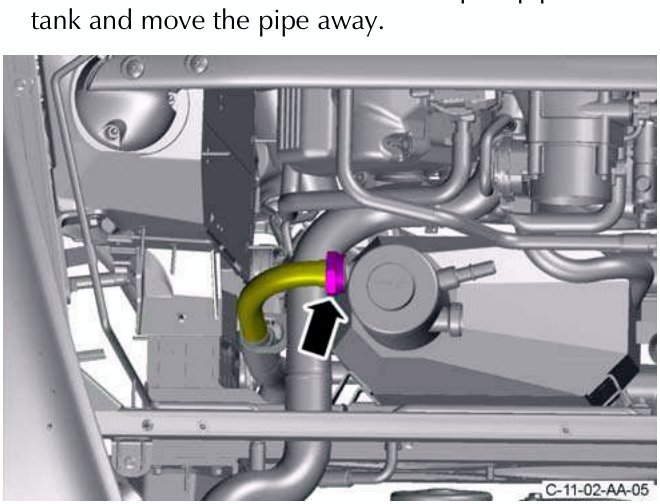

    9. Top oil pipe union loosened

    Figure 7

  9. Install sealing plugs into the open ports.
