Install

For 08MY vehicles or newer:

1. Put the Emotion Control Unit (ECU) into the docking station at position 2 to release the ESCL..

LEAVE THE VEHICLE FOR TWO MINUTES AFTER YOU DISCONNECT THE BATTERY BEFORE YOU DO WORK. IF YOU DO NOT, THE AIRBAG SYSTEM CAN OPERATE AND CAUSE INJURY.

1. Disconnect the vehicle battery.

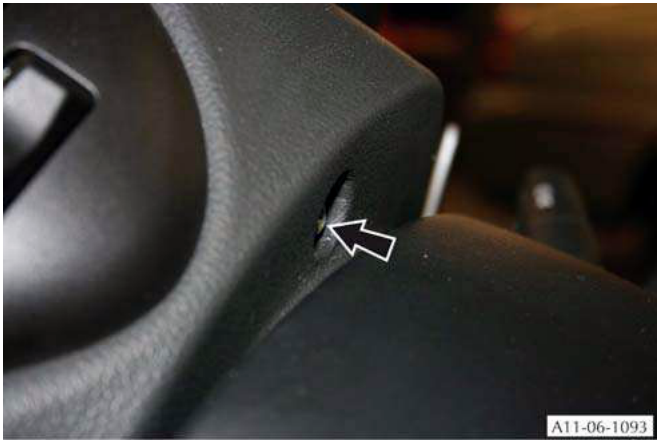

2. Turn the steering wheel to get access to one of the two M6 screws that attach the airbag module.

Figure A11-06-1093

1. Remove the M6 screw.
2. Turn the steering wheel to get access to the second M6 screw that attaches the airbag module.
3. Remove the second M6 screw.

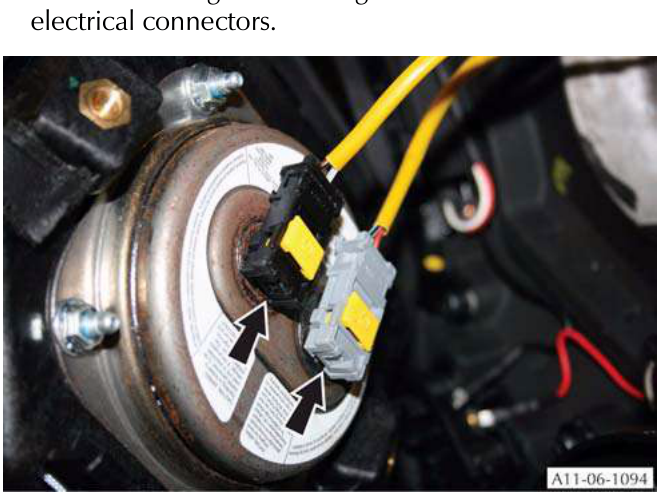

4. Move the airbag module to get access to the two electrical connectors.

Figure A11-06-1094

1. Disconnect the two electrical connector for the airbag module.
2. Remove the airbag module and keep it in an approved storage area.

Install

1. Connect the two electrical cables to the airbag module.
2. Put the airbag module in position.
3. Turn the steering wheel to get access to install one of the two airbag module M6 attachment screws.
4. Install and torque the first M6 attachment screw.
5. Turn the steering wheel to get access to install the second airbag module M6 attachment screw.
6. Install and torque the second M6 attachment screw.
7. Connect the vehicle battery.
