Front Lights: Specifications

Make
Aston Martin
Model
V8 Vantage Factory Workshop Manual
Year
2005–2010
Section
Front Lights › Specifications
17 LightingSpecifications

Specifications

Bulbs Rating Type (European) Type (Federal)
Headlight dipped beam-HID 35W D1S D1S
Headlight dipped beam-Halogen 55W H11LL H11LL
Headlight main beam 65W H9 H9
Side Repeater 5W WY5W WY5W
Side marker (front and rear) 3W N/A W3W
Headlamp Alignment European Federal
Main Beam Alignment 1% Down 0.7% Down Vol.
Dipped Beam Alignment 1% Down 0.7% Down Vol.

Main beam is fixed to the Dipped beam.

Maintenance

RH/LH Headlamp Assembly-Renew

Repair Operation Time (ROT)
Item Code
Headlamp Assembly-Renew RH 17.01.AB
Headlamp Assembly-Renew LH 17.01.BB

Removal

  1. Disconnect vehicle battery.
  2. Raise vehicle on ramp.
  3. Remove LH/RH road wheel.
  4. Remove intake air filter box (see Workshop Manual procedure 03.12.AB/03.12.BB Air Filter Box LH/RH Renew).
  5. Disconnect headlamp multiplug (see Fig. 1).
  6. Remove bolts (x3) from headlamp to bracket.
  7. Disconnect headlamp washer supply hose (see Fig. 2).
  8. Remove headlamp unit (see Fig. 4).

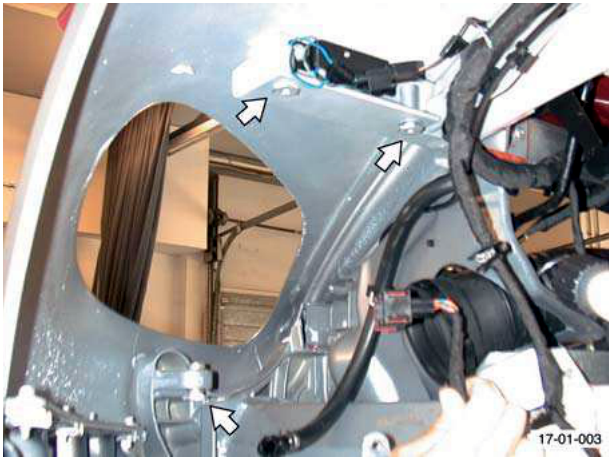

Headlamp assembly with bolts and wiring
Fig. 3

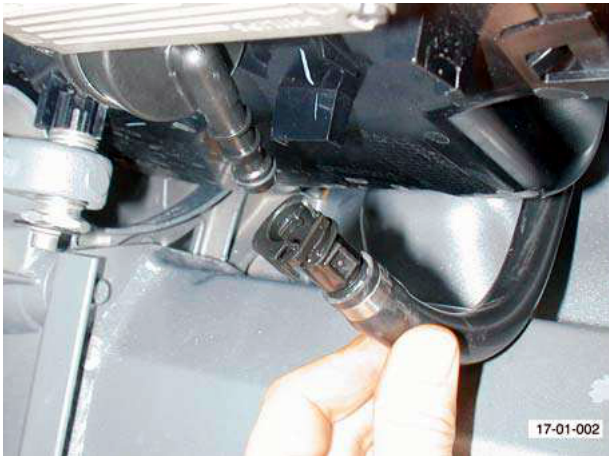

Hand disconnecting headlamp washer supply hose
Fig. 2

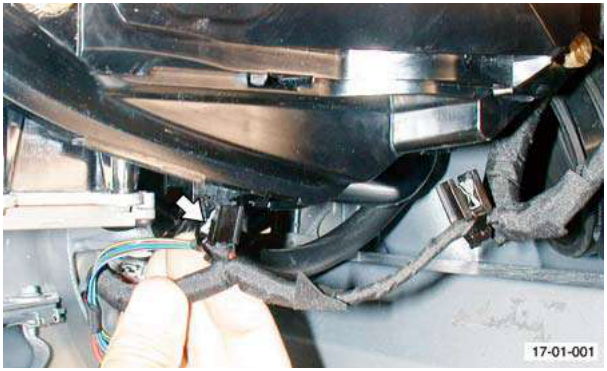

Disconnecting headlamp multiplug
Fig. 1

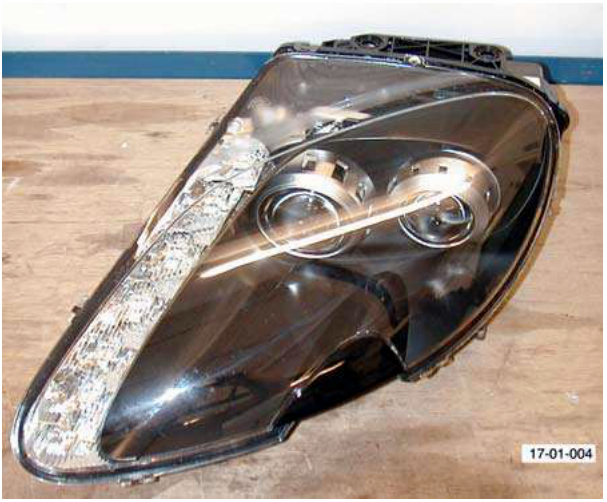

Removed headlamp unit
Fig. 4

Installation

  1. Connect multiplug and washer hose.
