Vehicle electricsPin assignment for CD changer

Pin assignment for CD changer

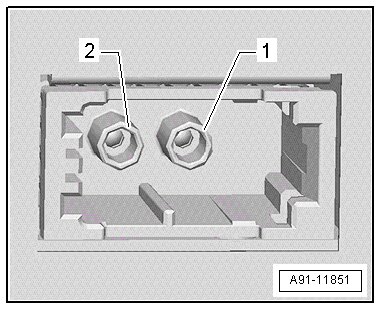

CD changer -R41- (MOST) 1 -  Multi-pin connector, 8-pin (T8aa) 2 -  MOST bus   Note Contacts which are not listed are not used.

1 - Multi-pin connector, 8-pin (T8aa) 1 -  Terminal 31 2 -  Terminal 30 5 -  Open circuit diagnostic lead

2 - MOST bus 1 -  Input 2 -  Output
