MMI Navigation system plus - layout

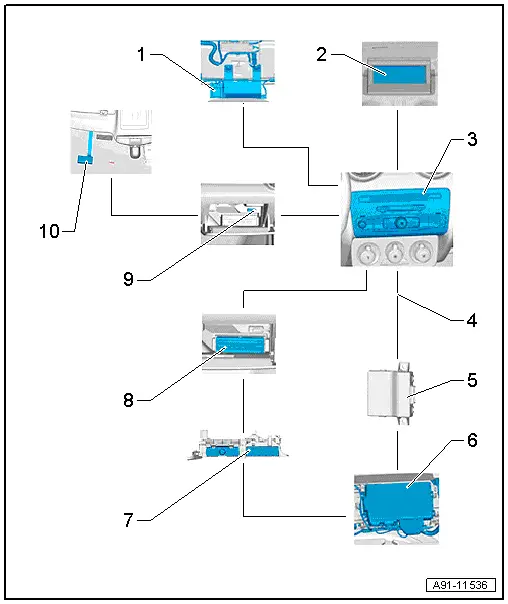

1 -	GPS aerial -R50-

2 -	Display unit for front information display and operating unit control unit -J685- in dash panel (centre)

3 -	Control unit 1 for information electronics -J794- in dash panel

4 -

MOST bus

5 -	Data bus diagnostic interface -J533- behind driver's storage compartment (left-side)

6 -	Digital sound package control unit -J525- in luggage compartment (left-side) beneath luggage compartment floor

7 -	Radio -R- in luggage compartment (left-side) beneath luggage compartment floor

8 -	CD changer -R41- in glove box

9 -	Chip card reader control unit -J676- in glove box

10 -	Traffic data aerial -R173- on windscreen (top left)
