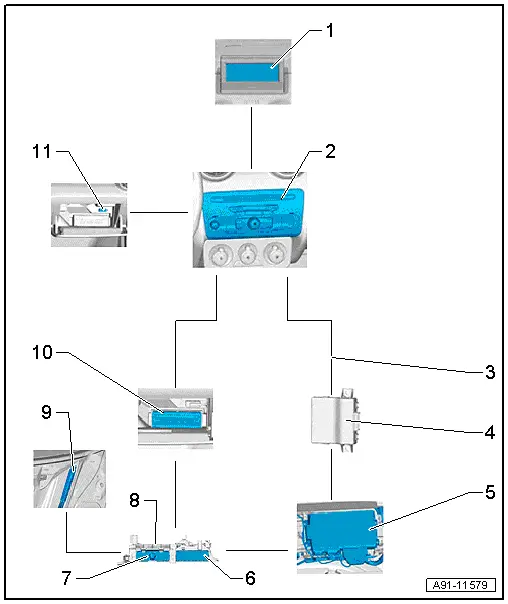

TV system - layout

1 -	Display unit for front information display and operating unit control unit -J685- in dash panel (centre)

2 -	Control unit 1 for information electronics -J794- in dash panel

3 -

MOST bus

4 -	Data bus diagnostic interface -J533- behind driver's storage compartment (left-side)

5 -	Digital sound package control unit -J525- in luggage compartment (left-side) beneath luggage compartment floor

6 -	Radio -R- in luggage compartment (left-side) beneath luggage compartment floor

7 -	TV tuner -R78- in luggage compartment (left-side) beneath luggage compartment floor

8 -	TV card reader -R204- in luggage compartment (left-side) beneath luggage compartment floor

9 -	Aerial amplifier in rear lid

10 -	CD changer -R41- in glove box

11 -	Connection for external audio sources -R199- (interface) in glove box
