A3 Mk1

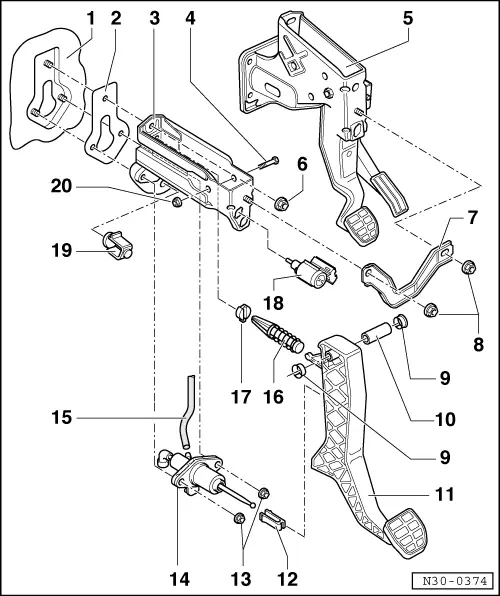

| Exploded view - pedal cluster |
| 1 - | Mounting on plenum chamber partition panel |
| q | For master cylinder and mounting bracket |
| 2 - | Gasket |
| q | Always renew |
| 3 - | Mounting bracket |
| q | For mounting clutch pedal |
| 4 - | Bolt |
| 5 - | Accelerator/brake pedal cluster |
| 6 - | Nut |
| q | 25 Nm |
| q | Self-locking |
| q | Always renew |
| 7 - | Connecting plate |
| 8 - | Nut |
| q | 25 Nm |
| q | Self-locking |
| q | Always renew |
| 9 - | Bearing bush |
| 10 - | Pivot pin |
| 11 - | Clutch pedal |
| q | Removing and installing → Chapter |
| 12 - | Retaining clip |
| q | Removing and installing → Item |
| 13 - | Nut |
| q | 25 Nm |
| q | Self-locking |
| q | Always renew |
| 14 - | Clutch master cylinder |
| q | Removing and installing → Item |
| 15 - | Supply hose |
| 16 - | Over-centre spring |
| q | Removing and installing → Chapter |
| 17 - | Over-centre spring mounting |
| q | Install in mounting bracket |
| 18 - | Clutch pedal switch -F36- |
| q | When removing and installing switch, push clutch pedal down as far as possible by hand |
| q | Before removing clutch pedal, turn switch 45° anti-clockwise and remove through mounting hole |
| q | Insert switch in mounting hole and secure by turning 45° clockwise |
| 19 - | Pedal stop |
| q | Installation position → Anchor |
| 20 - | Nut |
| q | 25 Nm |
| q | Self-locking |
| q | Always renew |
