A3 Mk2

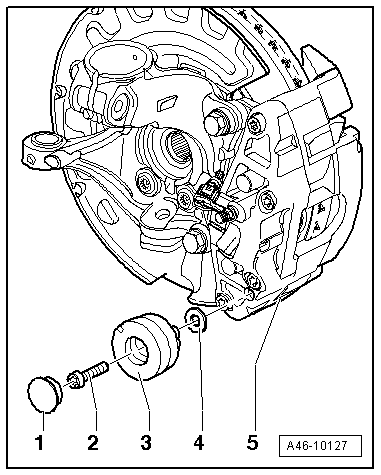

Brake caliper with vibration damper
Brake caliper with vibration damper
The vibration damper is not installed on all models. This has no influence on the removal, installation and servicing of the brake caliper.

1 - Dust cap
2 - Bolt
q   Always renew
q   10 Nm
3 - Vibration damper
q   Removing and installing → Chapter
4 - Washer
5 - Brake caliper
