A3 Mk2
Power transmission
6-speed manual gearbox 02S
Clutch, control
Exploded view - pedal cluster, clutch master cylinder
Removing and installing clutch position senderG476
Removing and installing clutch position senderG476
Removing and installing clutch position sender -G476-
Removing
–
Remove air cleaner housing completely
→ Rep. gr.24
.
Caution
Follow steps required when disconnecting battery
→ Electrical system; Rep. gr.27
.
–

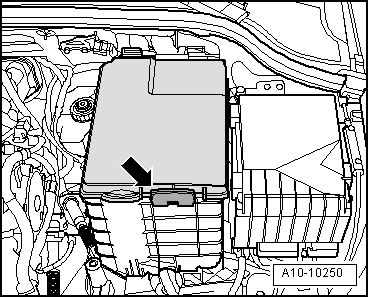

Detach cover above battery (press release tab
-arrow-
).
–
With ignition switched off, disconnect battery earth strap
-arrow-
.
–
Remove battery
→ Electrical system; Rep. gr.27
.
–

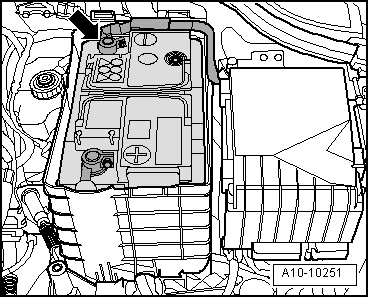

Remove battery tray
-arrows-
(detach front of battery tray from air duct if applicable).
–
Unplug electrical connector
-4-
.
–

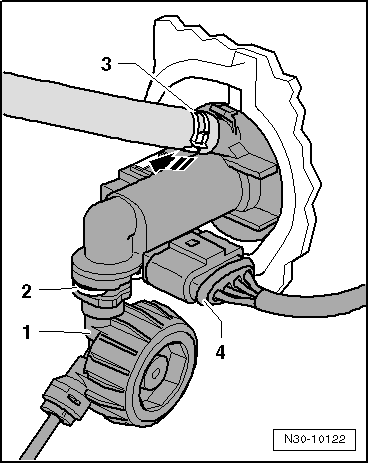

Unclip clutch position sender -G476- at clutch master cylinder in direction of
-arrow-
and remove.
Note
Items
-1 … 3-
can be disregarded.
Installing
Perform installation in reverse sequence of removal.
–
Fit clutch position sender -G476- at clutch master cylinder and engage
-arrow-
.
–
Attach electrical connector
-4-
.
Note
Items
-1 … 3-
can be disregarded.
–
Install battery tray and battery
→ Electrical system; Rep. gr.27
.
–
Install air cleaner housing
→ Rep. gr.24
.
