Rear final drive 02D/0AV (Transmission layout): Technical data

Make

Audi

Model

A3 Mk2

Section

Rear final drive 02D/0AV › Technical data › Transmission layout

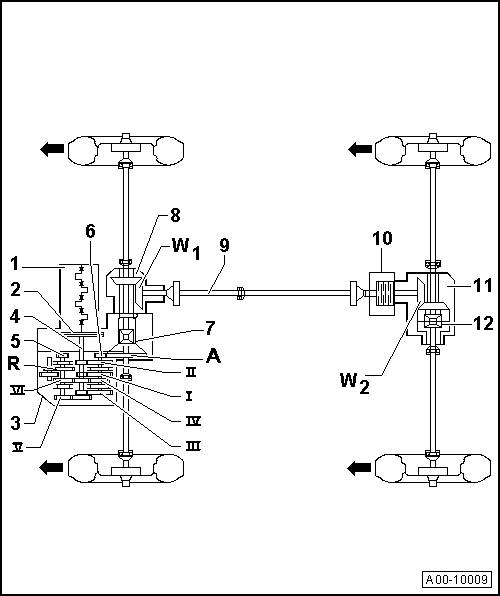

Power transmissionTransmission layout

Transmission layout Identification

1 -

Engine

2 -

Clutch

3 -	Manual gearbox or direct shift gearbox

4 -	Input shaft

5 -	Output shaft for 5th/6th/reverse gear (pinion shaft II)

6 -	Output shaft for 1st-4th gear (pinion shaft I)

7 -	Differential

8 -

Bevel box

9 -

Propshaft

10 -	Haldex coupling

11 -	Rear final drive

12 -	Differential

I -

1st gear

II -

2nd gear

III -

3rd gear

IV -

4th gear

V -

5th gear

VI -

6th gear

R -	Reverse gear

A -	Final drive

W 1 -

Front bevel gears

W 2 -

Rear bevel gears

Note Arrows point in direction of travel.
