Removing and installing oil cooler Special tools and workshop equipment required

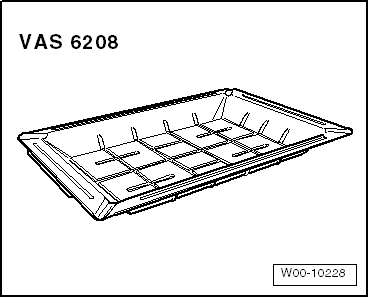

t  Drip tray for workshop hoist -VAS 6208-

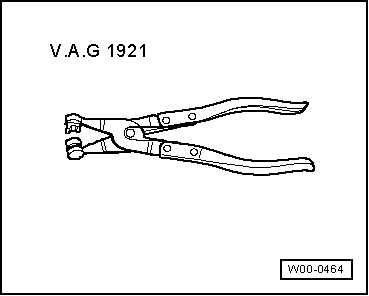

t  Hose clip pliers -V.A.G 1921- Removing   WARNING Hot steam/hot coolant may escape when opening expansion tank. Cover cap with cloth and open carefully. –  Open filler cap on coolant expansion tank

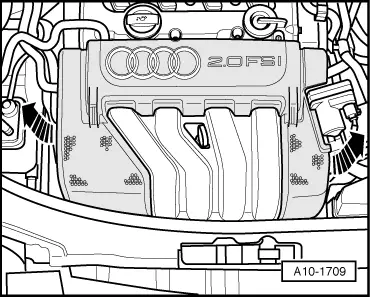

–  Lift off engine cover panel -arrows-.

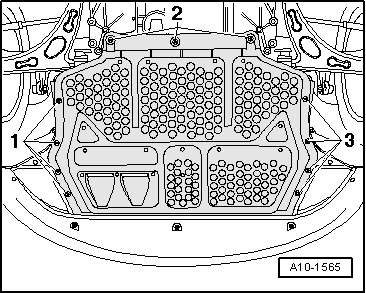

–  Remove noise insulation (centre) - fasteners -1 ... 3-. –  Place drip tray for workshop hoist -VAS 6208- beneath engine.

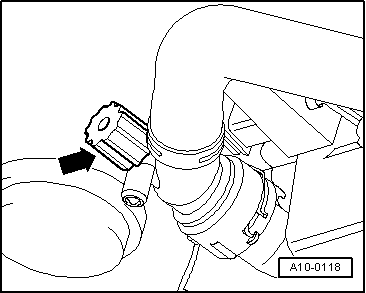

–  Turn drain plug -arrow- on radiator anti-clockwise, if necessary fit drain hose to connection.

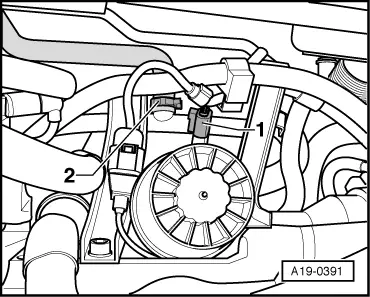

–  Unplug electrical connector -1- from oil pressure sender. –  Also disconnect bottom coolant hose at coolant pipe -2-, and drain off remaining coolant.

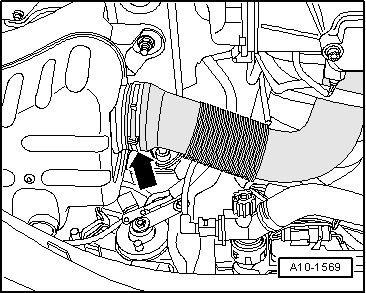

–  Disconnect air intake hose -arrow- at bottom of resonator (loosen hose clip using hose clip pliers -V.A.G 1921-).

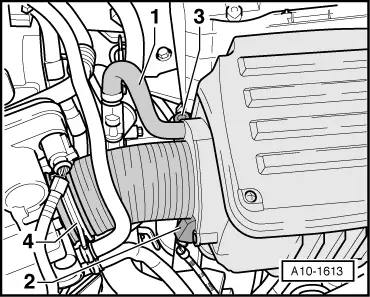

–  Detach hose -1- from air cleaner housing. –  Unplug electrical connector -2- from air cleaner housing. –  Remove bolt -3-. –  Disconnect air intake hose -4- from throttle valve unit (loosen hose clip using hose clip pliers -V.A.G 1921-). –  Take out air cleaner housing. –  Remove intake manifold and fuel rail → Rep. gr.24.

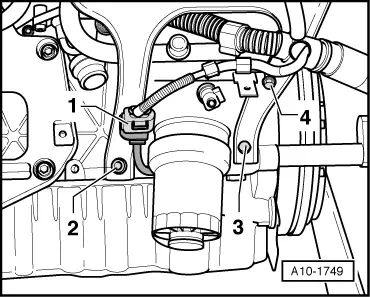

–  Detach electrical connector -1- from retainer and move wire clear. –  Detach electrical wiring from support for intake manifold. –  Unscrew bolts -2 ... 4- and remove support for intake manifold.

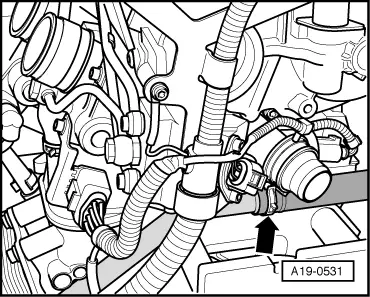

–  Detach coolant hose -arrow- from coolant pipe.

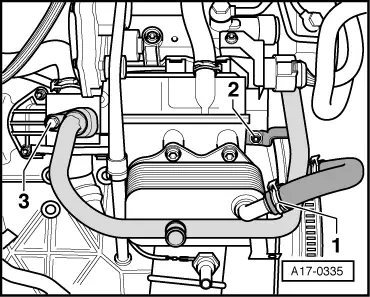

–  Detach coolant hose -1- from coolant pipe. –  Remove bolts -2- and -3- and detach coolant pipe.

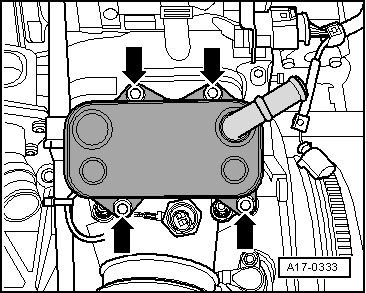

–  Remove oil cooler -arrows-. Installing Installation is carried out in the reverse order; note the following:   Note t  Renew gaskets and seals. t  Secure all hose connections with the correct type of hose clips (same as original equipment) → Parts catalogue. –  Fill up with coolant → Chapter. Tightening torques

Component			Nm
Coolant pipe to cylinder block			10
Coolant pipe to thermostat housing			10
Oil cooler to oil filter bracket			25
