Installing engine > < Separating engine from direct shift gearbox

A3 Mk2

Securing engine to engine and gearbox support

Securing engine to engine and gearbox support

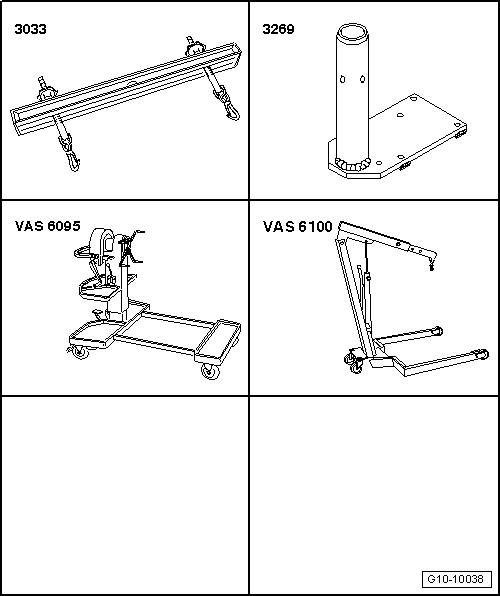

Special tools and workshop equipment required
t  Lifting tackle -3033-
t  Engine bracket -3269-
t  Engine and gearbox support -VAS 6095-
t  Workshop hoist -VAS 6100-


Procedure
–  Attach lifting tackle -3033- to engine and workshop hoist -VAS 6100- as shown in the illustration.
–  Lift engine off engine support using workshop hoist -VAS 6100-.
  N10-0387
Securing engine at gearbox end
–  Secure engine and gearbox support -VAS 6095- to gearbox end of cylinder block as shown in illustration.
  N10-10032
Securing engine at side
–  Secure engine bracket -3269- to side of cylinder block as shown in illustration.
–  Secure engine to engine and gearbox support -VAS 6095- using engine bracket -3269-.
  N10-10155

Installing engine > < Separating engine from direct shift gearbox
