Renewing the oil seals in the upper cover for timing chains
Renewing the oil seals in the upper cover for timing chains
Special tools and workshop equipment required

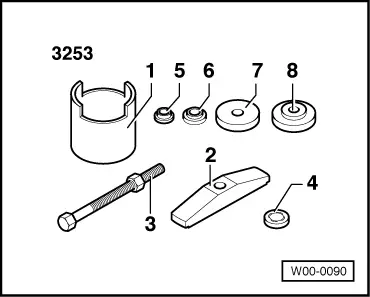

t  Assembly tool -3253-
  W00-0090

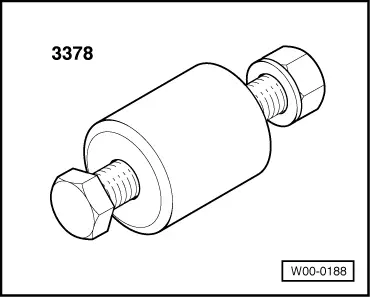

t  Fitting sleeve -3378-
  W00-0188
Procedure
l  Upper cover for timing chains removed.
–  Use drift to drive out oil seals.

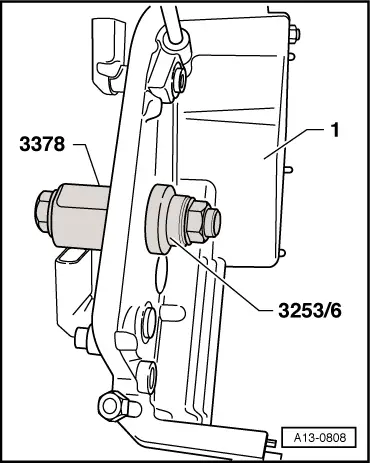

–  Insert seal into upper cover for camshaft timing chain -1- with fitting sleeve -3378- and then use assembly tool -3253/6- to press it in flush.
  A13-0808
