Torque converter
Torque converter
Important
Before installing the gearbox, check the installed depth of the torque converter => Page32-11.

Notes:

  • ◆ Observe rules for cleanliness when working on the automatic gearbox .
  • ◆ General repair instructions => Page 00-22.
  • ◆ Lubricate seals lightly with ATF. Other lubricants cause malfunctions in the gearbox hydraulics.
  • ◆ There are two different versions of torque converters. Allocation.
  • ◆ If a new type of torque converter with integrated needle bearing is fitted in a gearbox with sleeve bearing in the turbine shaft, the sleeve bearing must be removed=>Page32-5.

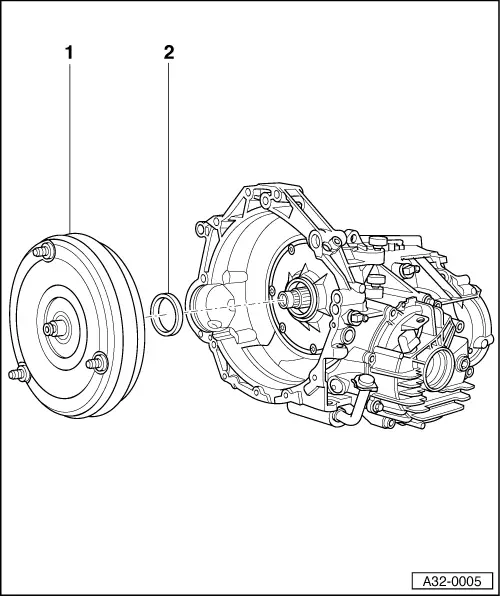

A32-0005
  • Torque converter
    • ◆ Secure in place when gearbox is removed
    • ◆ Code letters
      => from Page 00-3
    • ◆ Allocation
    • ◆ Checking
    • ◆ Installing => Page 32-10
    • ◆ Installed depth => Page 32-11
  • Oil seal
    • ◆ Renewing => Page 32-7
