Audi A4 Mk103 · Power unit
03 · Engine

4-cylinder engine (5-valve turbo), mechanics (Engine number): Technical data

Make
Audi
Model
A4 Mk1
Section
4-cylinder engine (5-valve turbo), mechanics › Technical data › Engine number
Power unitEngine number
Engine number

t  The engine number (“Engine code” and “Serial number”) can be found on the rear left of the cylinder block.
t  Additionally there is a sticker on the toothed belt cover with“Engine code” and “Serial number”.
t  The engine code is also included on the vehicle data sticker.
4-cylinder engine (5-valve turbo), mechanics (Engine number): Technical data – Audi A4 Mk1  Note

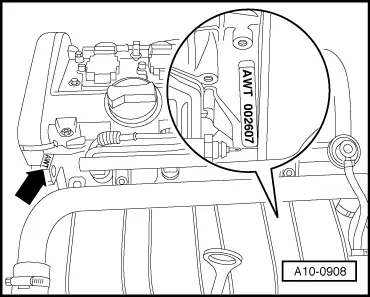

The engine code is also stamped on the front engine lifting eye (visible after detaching engine cover panel).
  A10-0908
