Adjusting rear lid
Adjusting rear lid
Special tools and workshop equipment required

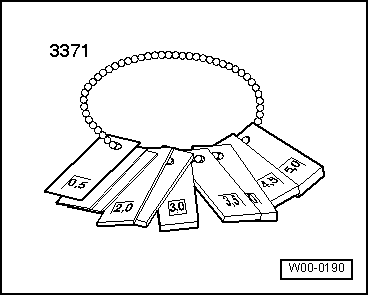

t  Setting gauge -3371-
  W00-0190
Gap widths
The gap widths can be checked using the setting gauge -3371-.
l  In area -A- = 3.5 ± 0.5 mm
l  In area -B- = 3.7 ± 0.5 mm
l  In area -C- = 5.0 ± 0.5 mm

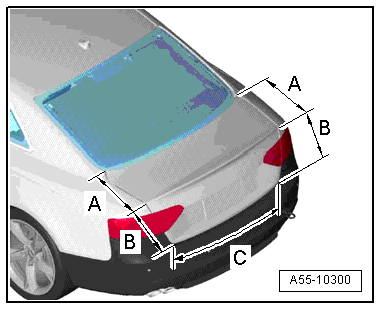

  A55-10300
Height adjustment
–  Height of rear lid can be adjusted by slackening nut and adjusting it in direction of -arrow-.
–  To do so, rear shelf must be removed if hinge is installed.
–  Before removing rear shelf, disengage spring from hinge.
–  Unbolt hinge beneath rear shelf, loosen nut on hinge and adjust as appropriate.
–  After adjusting, tighten nut on hinge to 20 Nm.
–  Install hinge and spring, and attach gas strut if necessary.

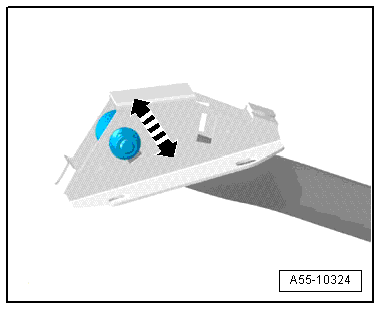

  A55-10324
–  The height can be adjusted by moving the striker -1-.
–  Loosen nut -2-, move striker plate as appropriate and tighten nuts to specified torque.

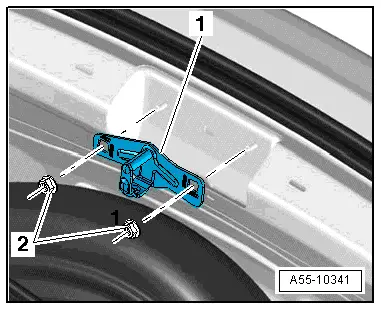

  A55-10341
