A4 Mk3

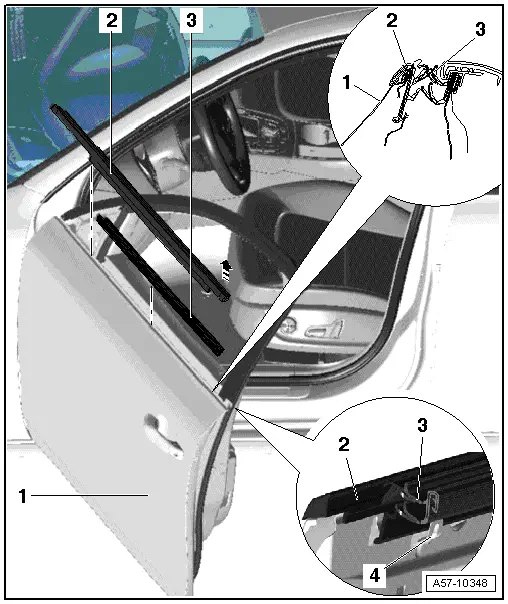

| Exploded view - outer and inner window slot trim strips |
| 1 - | Door |
| 2 - | Outer window slot trim strip |
| q | Removing and installing → Chapter |
| 3 - | Inner window slot trim strip |
| q | Door trim removed |
| – | Detach upwards from door flange. |
| – |
| 4 - | Retaining hook |
| q | Slide window slot trim strip into retaining hook, as shown. |
