A4 Mk3
| Removing and installing window guide |
| 1 - | Window guide |
| q | Door trim and window frame trim removed → Rep. gr.70 |
| q | Exterior mirror removed → Chapter |
| Trim panel for B-pillar (at front door) removed → Chapter |
| q | Door window removed |
| – | Starting at the top, detach window guide from door, also detaching it at A-pillar and B-pillar sides. |
| – | Lift window guide out of door. |
| q | To facilitate assembly, spray window guide with a soap solution. |

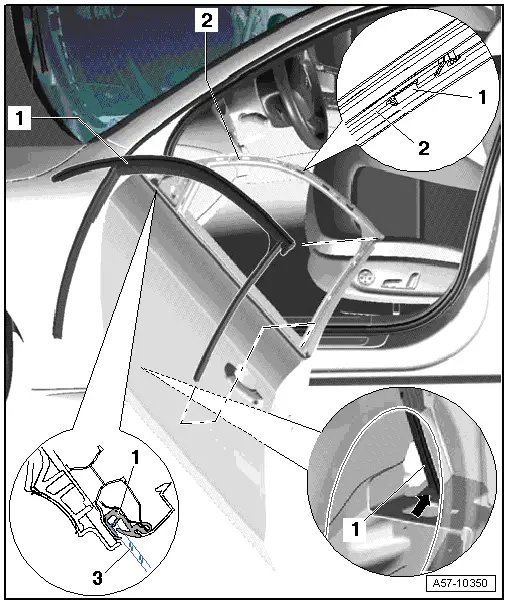

| q | Fit window guide into guide slots as shown in detail view. |
| q | Press window guide into door (top) with retainer tabs. |
| 2 - | Door |
| 3 - | Door window |
