Removing and installing mounting frame for radio/navigation system
Removing and installing mounting frame for radio/navigation system

Removing
–  Remove dash panel vent (centre) → Chapter.
–  Remove radio/navigation system → Rep. gr.91.

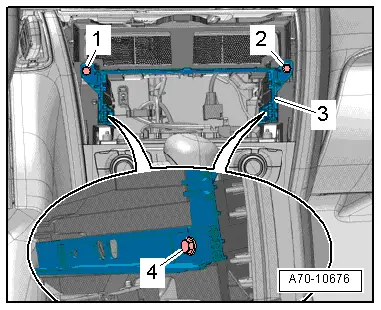

–  Unscrew bolts -1- and -2- at front of mounting frame.
–  Remove bolts -4- at side.
–  Pull out mounting frame -3- towards rear and detach.
Installing
Install in reverse order of removal.
Tightening torque → Chapter
  A70-10676
