A4 Mk3

Removing and installing retaining frame for instrument cluster
Removing and installing retaining frame for instrument cluster

Removing
–  Remove instrument cluster → Electrical system; Rep. gr.90.
–  Remove trim for light switch → Chapter.
–  Remove MMI screen → Rep. gr.91.

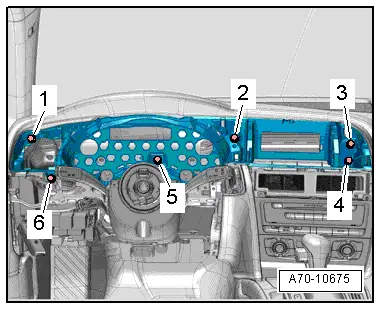

–  Unscrew bolts -1 ... 6- and take out retaining frame.
Installing
Install in reverse order of removal.
Tightening torque → Chapter
  A70-10675
