A4 Mk3

Removing and installing left (driver side) footwell vent
Removing and installing left (driver side) footwell vent
–  Move the driver's seat to the rearmost position.
–  Switch off the ignition.
–  Remove the storage compartment beneath the dash panel on the driver side. → General body repairs, interior; Rep. gr.70

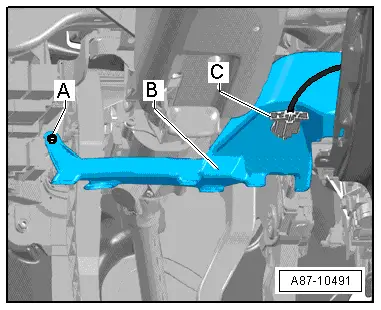

–  Unplug the connector -C- from the footwell vent temperature sender -G192- / left footwell vent temperature sender -G261-.
–  Remove the bolts -A-.
–  Remove the left footwell vent -B-.
Installing
Install in reverse order; paying attention to the following:
–  Switch on the ignition.
–  Interrogate the event recorder of the operating and display unit, Climatronic control unit -J255- and erase any faults displayed → "Guided fault-finding" function of vehicle diagnostic, testing and information system VAS 5051.
  A87-10491
