A4 Mk3

Levers and connecting elements at air conditioning unit
Levers and connecting elements at air conditioning unit
  Note

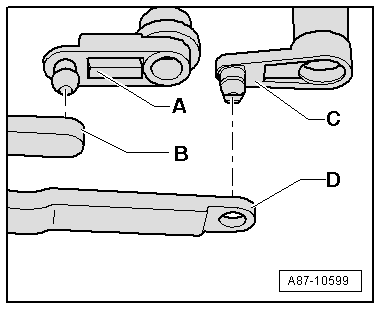

There are different versions of the levers and connecting elements at the air conditioning unit. Levers -A- with a solid pin and connecting rod -B- were fitted at the start of production. In Model Year 2008 a gradual change was made to levers -C- with a slotted pin and connecting rod -D-. Pay attention to the correct version on replacement → Electronic parts catalogue.
  A87-10599
