Removing and installing selector lever lock solenoid -N110-

Removing –  Shift selector lever into position “P”. –  Remove multimedia operating unit -E380- → Rep. Gr.91. –  Remove front ashtray → Rep. Gr.68.

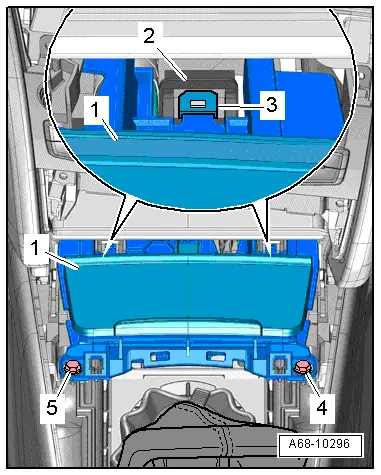

–  Unscrew nuts -1, 3, 5, 6- a few turns, but do not remove completely.   Note This will lower the shift unit slightly and facilitate removal.

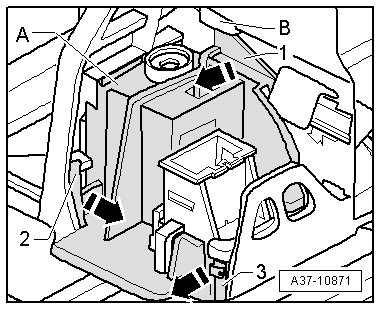

Caution The selector mechanism can be damaged by broken retaining clips, retaining tabs or other objects. Make sure that no parts or objects drop into the selector mechanism. If this happens, the selector mechanism will have to be renewed! –  Release retaining tabs -2- and -3- in direction of -arrow-, lift front of sealing cap -A- slightly and hold in that position.   Note This prevents the retaining tabs from engaging again. –  Using a screwdriver, release top retaining tab -1- of sealing cap from retainer -B- in direction of -arrow- and lift out sealing cap -A-.

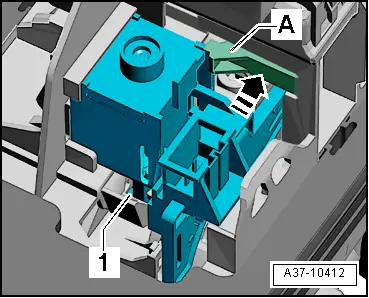

–  Unplug electrical connector on selector lever lock solenoid -N110-. –  Press retaining hook -A- in direction of -arrow- and hold in this position.   Note The shift unit must be renewed if the retaining hook -A- breaks off.

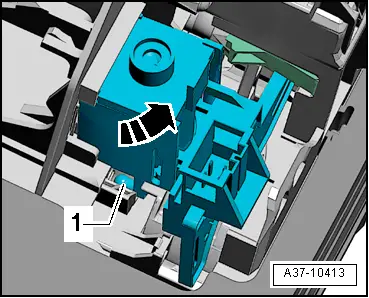

–  Tilt bottom part of selector lever lock solenoid -N110- out in direction of -arrow- so that ball head -1- disengages from operating lever on selector mechanism. –  Detach selector lever lock solenoid -N110-. Installing Installation is carried out in reverse sequence; note the following: l  Tightening torque → Chapter –  Turn ball head -1- into correct position for installation. –  Guide selector lever lock solenoid -N110- into selector mechanism at an angle from above and tilt bottom part in opposite direction of -arrow-.

l  Ball head -1- must engage fully in operating lever on selector mechanism; press home with a small screwdriver if necessary. –  Secure selector lever lock solenoid -N110- to retaining hook -A-.

–  Place cover -A- over selector lever lock solenoid -N110- and carefully engage -1 ... 3-. –  Attach electrical connectors. –  Check function of selector mechanism before continuing assembly → Chapter. –  Install front ashtray → Rep. Gr.68. –  Install multimedia operating unit -E380- → Rep. Gr.91.
