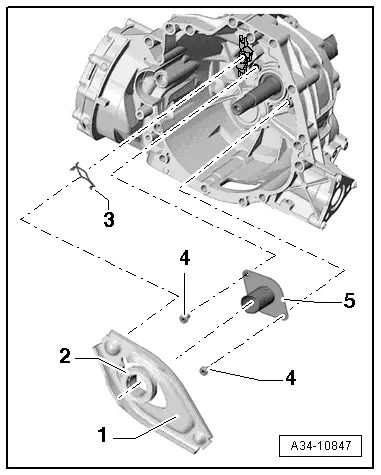

| Remove clutch release lever -1- together with release bearing -2- and retaining spring -3-. |
| –
| Screw out the bolts -4- and detach the guide sleeve -5-. |
| –
| If applicable, remove the old grease at the clutch release lever -1-, release bearing -2- and guide sleeve -5-. |
| –
| Clean and fit the guide sleeve -5-. |
| –
| Clean threads of bolts -4- with wire brush. Then apply locking fluid -AMV 185 101 A1- to bolts and tighten. Tightening torque → Item. |
Caution | “Creaking noise” on pressing the clutch |
| Grease bearing surfaces for clutch release lever → Item with lubricating paste -G 000 150-. |
|
| –
| Engage release bearing -2- and retaining spring -3- in release lever -1- and install complete assembly. |
|
|
|
