Removing and installing radiator fans V7/V177 - version 1
Removing and installing radiator fans -V7-/-V177- - version 1

Removing
  Note
Radiator fan 2 -V177- not fitted if fan runs with 400 W.
–  Remove radiator with radiator cowl → Chapter.

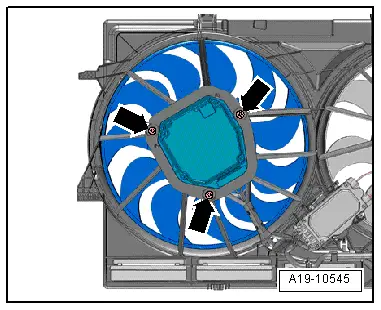

–  Remove bolts -arrows- on radiator fan -V7- (left-side).
–  Move electrical wiring harness clear and detach radiator fan.
  A19-10545

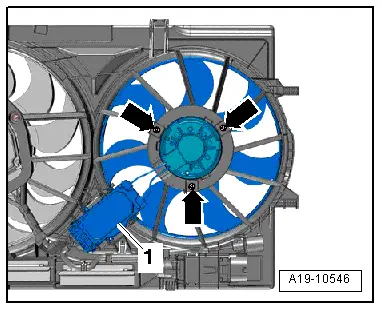

–  Remove bolts -arrows- on radiator fan 2 -V177- (right-side).
–  Move clear electrical wiring harness.
–  Unclip radiator fan control unit -1- from radiator cowl and detach radiator fan with control unit.
Installing
Installation is carried out in the reverse order; note the following:
l  Tightening torques → Chapter
–  Install radiator with radiator cowl → Chapter.
  A19-10546
