A4 Quattro Cabriolet L4-2.0L Turbo (BWT) (2009)

Page 1
background image

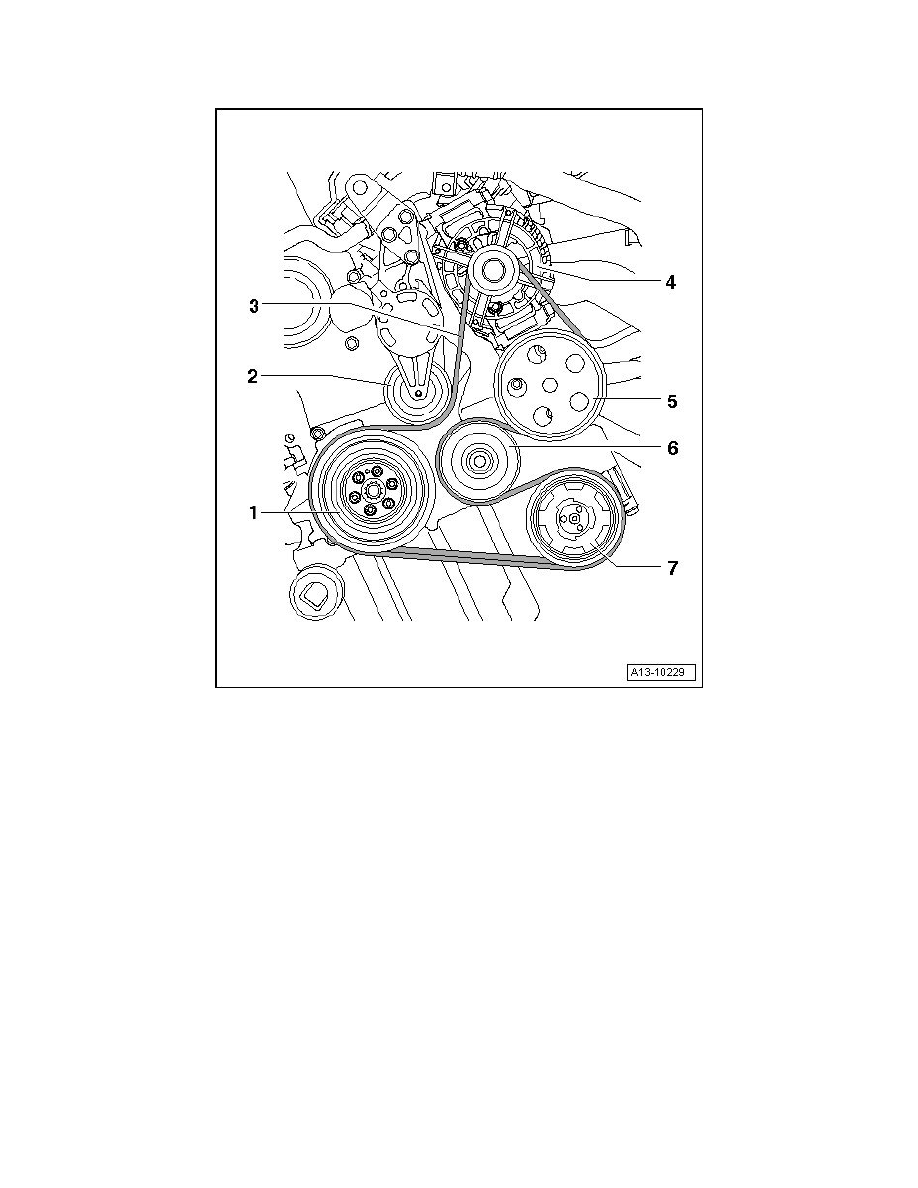

Drive Belt: Diagrams

Ribbed Belt, Routing

1

Vibration damper

2

Belt tensioner for ribbed belt

3

Ribbed belt

4

Generator

5

Power steering pump

6

Idler roller

7

Air conditioner compressor
