Drive Belt: Diagrams
- Make
- Audi
- Model
- A4 Quattro Wagon
- Engine
- L4-2.0L Turbo (BPG)
- Year
- 2005
- Section
- Drive Belt › Diagrams
MaintenanceDiagrams
/Page-1092001.png)
Drive Belt: Diagrams

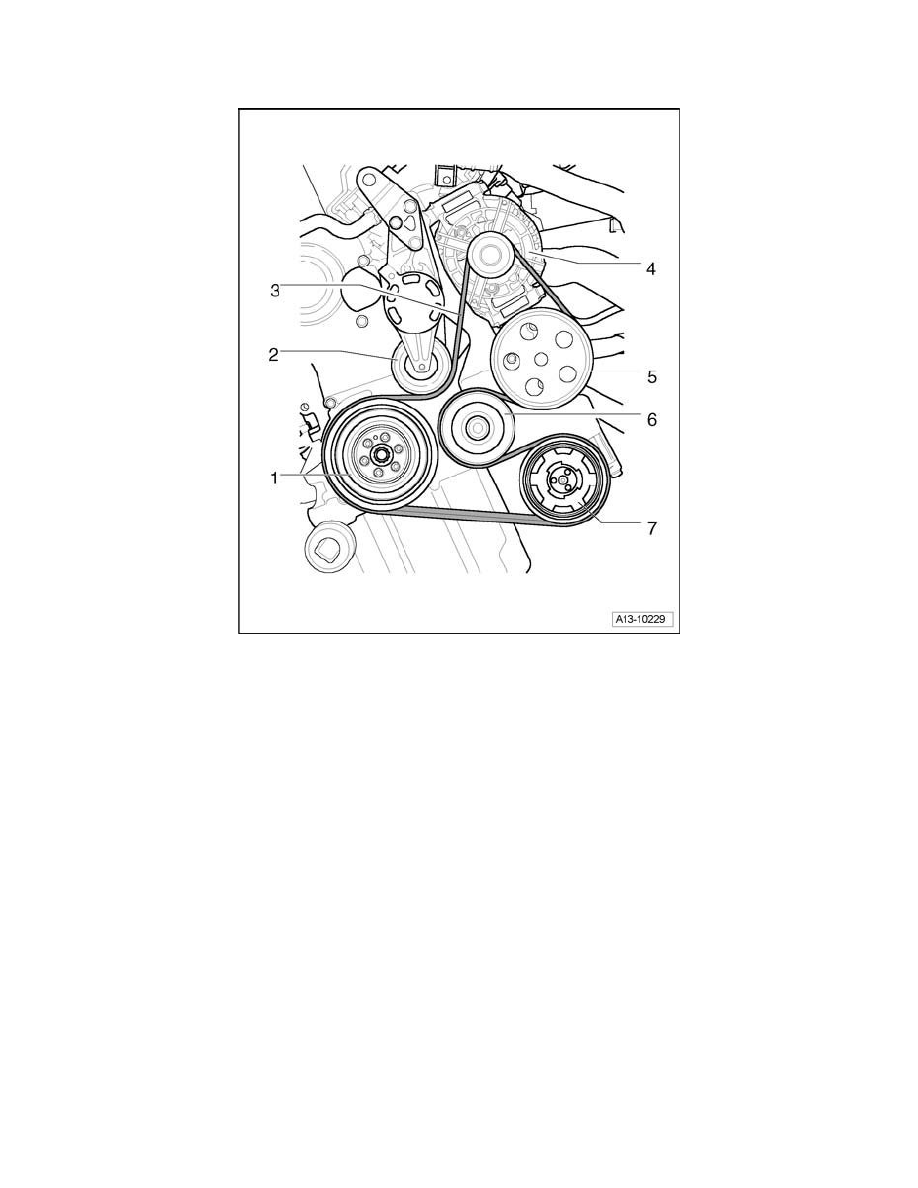

Ribbed belt routing
1. Vibration damper
2. Belt tensioner for ribbed belt
3. Ribbed belt
4. Generator
5. Power-steering pump
6. Idler roller
7. Air conditioner compressor
