6-speed manual gearbox 0B2, four-wheel drive (Gearbox identification): Technical data

Make

Audi

Model

A5

Section

6-speed manual gearbox 0B2, four-wheel drive › Technical data › Gearbox identification

Power transmissionGearbox identification

Gearbox identification t  Allocation, Audi A4 → Chapter „Audi A4 2008 ► Code letters, allocation, transmission ratios, capacities“ t  Allocation, Audi A5 → Chapter „Audi A5 Coupé 2008 ► Code letters, allocation, transmission ratios, capacities“ t  Allocation, Audi A5 Sportback → Chapter „Audi A5 Sportback 2010 ► Code letters, allocation, transmission ratios, capacities“

Location on gearbox t  -Arrow A- Manual gearbox 0B1/2 → Fig. t  -Arrow B- Code letters and production date → Fig. t  -Arrow C- Code letters and production date on underside of gearbox housing (not on all versions)

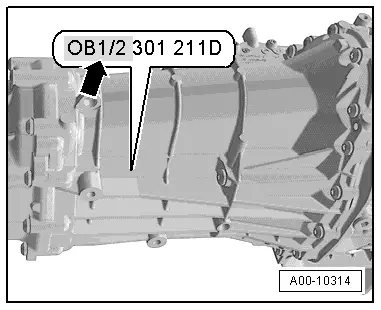

Manual gearbox 0B1 or 0B2 -arrow- t  0B1 = gearbox version for front-wheel drive t  0B2 = gearbox version for four-wheel drive (can be identified by flange shaft for propshaft)

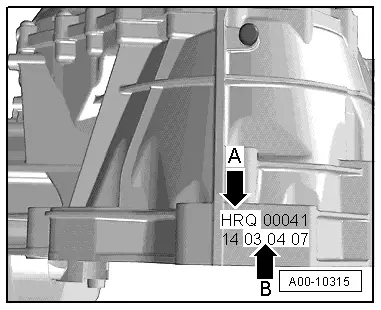

Code letters -arrow A- and production date of gearbox -arrow B-

Example:	HRQ	03 04 07
	Code letters	Production date: 03.04.07

Note t  Additional data are manufacture-related. t  The code letters for the gearbox are also given on the vehicle data stickers.
