Adjusting selector lever cable to basic setting > < Removing and installing selector lever cable

A5

Adjusting selector lever cable
Adjusting selector lever cable
Special tools and workshop equipment required

t  Removal wedge -3409-
  W00-0016
t  Socket and key -T40031-
  W00-1181
Procedure
l  Tightening torque → Chapter „Exploded view - selector lever cable“
–  Pull up parking brake button to apply electromechanical parking brake.
–  Shift selector lever to position „D“.
–  Carefully pry out selector lever boot at the side in direction of -arrows- using removal wedge -3409- and turn selector lever boot inside out over selector lever handle.
  A68-10405

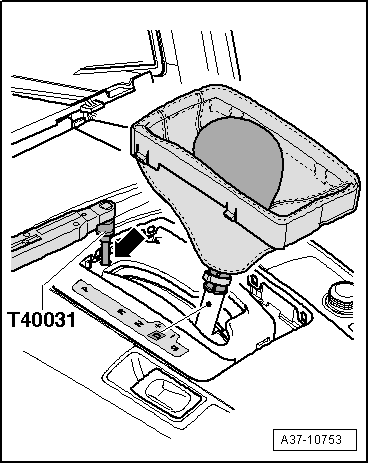

–  Insert socket and key -T40031- through access hole -arrow- in selector mechanism and slacken bolt on selector lever cable approx. one turn.
  Note
t  Only loosen clamping bolt – do not remove.
t  Clamping bolt can only be accessed with selector lever in position „D“.
t  With clamping bolt loosened, selector lever must remain in position „D“.
–  Carefully move selector lever slightly forwards and backwards, without shifting lever into a different selector lever position. The selector lever cable is thereby slackened.
–  Shift selector lever into „tiptronic gate“.
–  Use socket and key -T40031- to tighten clamping bolt in this position, taking care not to touch selector lever.
–  Check selector mechanism → Chapter.
l  After adjusting selector lever cable, run appropriate „Guided Function“ on vehicle diagnostic tester → Chapter
If selector mechanism is not functioning correctly after adjusting selector lever cable, proceed as follows:
–  Adjust selector lever cable to basic setting → Chapter.
  A37-10753

Adjusting selector lever cable to basic setting > < Removing and installing selector lever cable
