A5
|

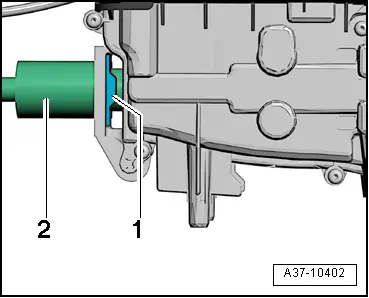

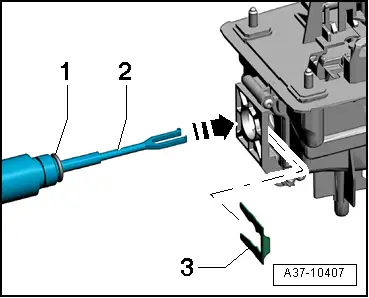

| 1 - | Retaining clip |
| q | Secures selector lever cable to shift unit |
| 2 - | O-ring |
| q | Renew |
| 3 - | Bolt |
| q | For adjusting selector lever cable |
| q | Secured to shift unit |
| q | 13 Nm |
| 4 - | Selector lever cable |
| q | Do not bend or kink |
| q | Different versions (according to vehicle); for correct version refer to → Electronic parts catalogue |
| q | Removing and installing → Chapter |
| q | Selector lever cable must be renewed if rubber sleeve is damaged |
| q | Before installing, lightly lubricate ball socket with polycarbamide grease -G 052 142 A2-. |
| q | When installing, make sure that rubber sleeve on gearbox end is not twisted |
| q | Adjusting → Chapter |
| l | After adjusting selector lever cable, run appropriate „Guided Function“ on vehicle diagnostic tester → Chapter |
| 5 - | Gearbox selector lever |
| 6 - | Retaining clip |
| q | Secures selector lever cable to cable support bracket |
| 7 - | Cable support bracket |
| 8 - | Bolt |
| q | 8 Nm |
| 9 - | Bolt |
| q | 8 Nm |
