Removing and installing 12 V socket 3U19
Removing and installing 12 V socket 3 -U19-

Removing
–  Switch off ignition and take out ignition key.

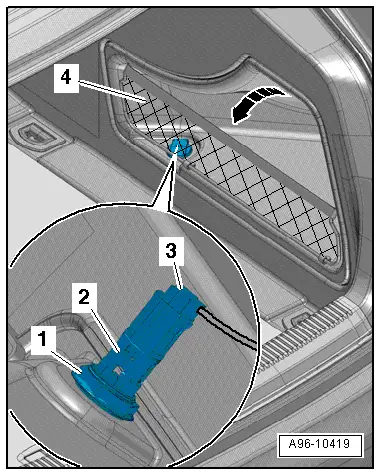

–  Open cover -4- in luggage compartment side trim (right-side) -arrow-.
–  Unplug electrical connector -3-.
–  Unscrew nut -1-.
–  Remove 12 volt socket 3 -U19--item 2- from cover of luggage compartment side trim (right-side).
Installing
l  Tightening torque → Chapter
Install in reverse order.
  A96-10419
