Headlight washer system

Make

Audi

Model

A5

Section

Electrical system › Windscreen wipe/wash system › Headlight washer system

Vehicle electricsHeadlight washer system

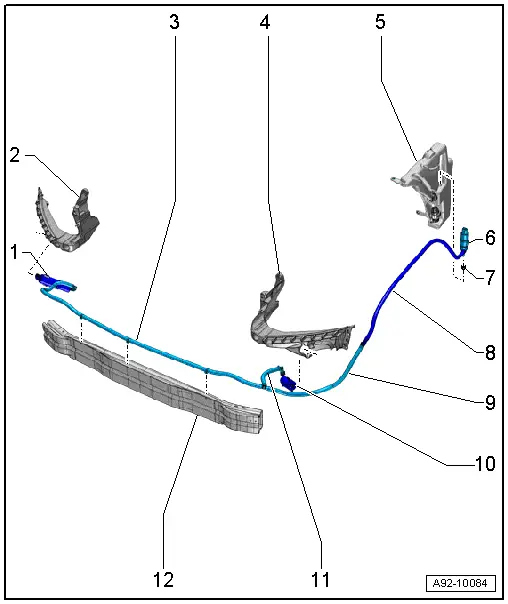

Exploded view of washer fluid reservoir, washer fluid hoses, washer jets

1 -	Right washer jet

q	Removing and installing → Chapter

2 -	Mounting (right-side)

q	For washer jet and headlight

3 -	Washer hose

q	For washer jet (right-side)

q	Attached to bumper with cable tie

4 -	Mounting (left-side)

q	For washer jet and headlight

5 -	Washer fluid reservoir

6 -	Headlight washer system pump -V11-

q	Removing and installing → Chapter

7 -	Sealing grommet

q	For headlight washer system pump -V11-

8 -	Fluid hose

q	From headlight washer system pump -V11-

9 -	Washer hose

q	To washer jets

10 -	Left washer jet

q	Removing and installing → Chapter

11 -	Washer hose

q	For washer jet (left-side)

12 -	Impact bar
