A5

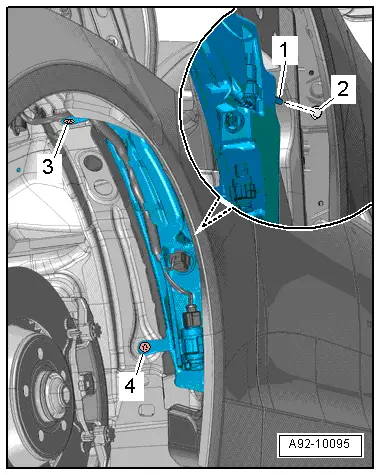

| Exploded view of washer fluid reservoir, washer fluid hoses, washer jets |
| 1 - | Bolt |
| q | Tightening sequence → Fig. |
| 2 - | O-ring |
| q | Renew if damaged |
| 3 - | Sealing grommet |
| q | Renew if damaged |
| 4 - | Filler neck |
| q | For washer fluid reservoir |
| q | Removing and installing → Chapter |
| 5 - | Support ring |
| 6 - | Nut |
| q | Bolt connection with body brace |
| q | Tightening torque → Rep. gr.40 |
| 7 - | Cap |
| q | For filler neck |
| 8 - | Washer fluid hose |
| q | For windscreen washer system |
| 9 - | Right washer jet |
| q | With right washer jet heater element -Z21- (depending on version) |
| q | Removing and installing → Chapter |
| q | Adjusting → Chapter |
| 10 - | Left washer jet |
| q | With left washer jet heater element -Z20- (depending on version) |
| q | Removing and installing → Chapter |
| q | Adjusting → Chapter |
| 11 - | Washer fluid reservoir |
| q | Removing and installing → Chapter |
| 12 - | Headlight washer system pump -V11- |
| 13 - | Sealing grommet |
| 14 - | Washer fluid hose |
| q | For headlight washer system |
| 15 - | Retaining ring |
| q | For washer pump -V5- |
| 16 - | Washer pump -V5- |
| q | Removing and installing → Chapter |
| 17 - | Sealing grommet |
| 18 - | Bolt |
| q | Tightening sequence → Fig. |
| 19 - | Sealing grommet |
| 20 - | Washer fluid level sender -G33- |
| q | Removing and installing → Chapter |
|
|
