Removing and installing starter - vehicles with 1.8 ltr. and 2.0 ltr. TFSI engine
Removing and installing starter - vehicles with 1.8 ltr. and 2.0 ltr. TFSI engine

Removing
–  With ignition switched off, disconnect earth cable at battery → Chapter.
–  Remove engine mounting (right-side) → Rep. gr.10.

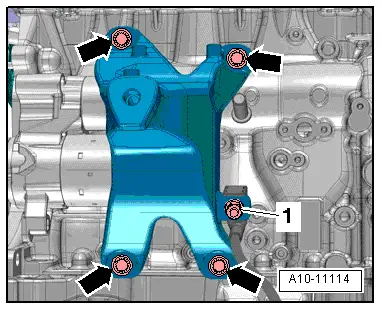

–  Remove nut -1- and move earth cable clear at engine support (right-side).
–  Remove bolts -arrows- and detach engine support (right-side).
  A10-11114

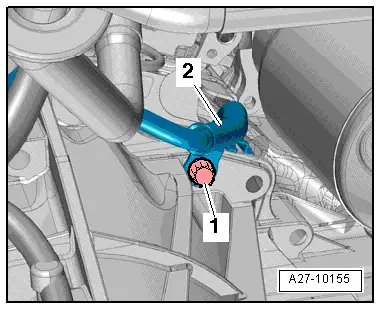

–  Remove bolt -1- for retainer -2- for wiring harness.
  A27-10155
–  Unplug connector -3- by sliding locking element to rear and pressing down release catch.
–  Unscrew wire -2- at starter.
–  Unscrew bolts -1- and -4- and remove starter.
  Note
-Item 1- is accessible from above.
  A27-10148
Installing
l  Tightening torques → Chapter
Installation is carried out in the reverse order; note the following:

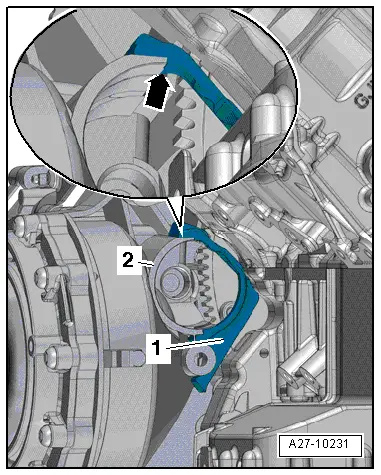

–  On vehicles with multitronic gearbox and 2.0 ltr. FSI engine, check whether locking part -1- is properly inserted in starter opening before installing starter.
l  The locking part must align with the starter opening -2--arrow-.
  A27-10231
  Caution
Risk of damage to starter.

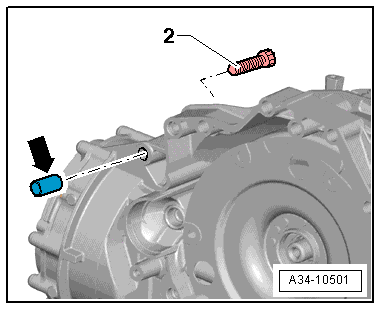

To tighten bolt -2-, spacer sleeve -arrow- must be inserted between starter and gearbox.
–  Install engine support and engine mounting (right-side) → Rep. gr.10.
–  Connect battery. Steps required → Anchor.
