A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-2272008.png)
-

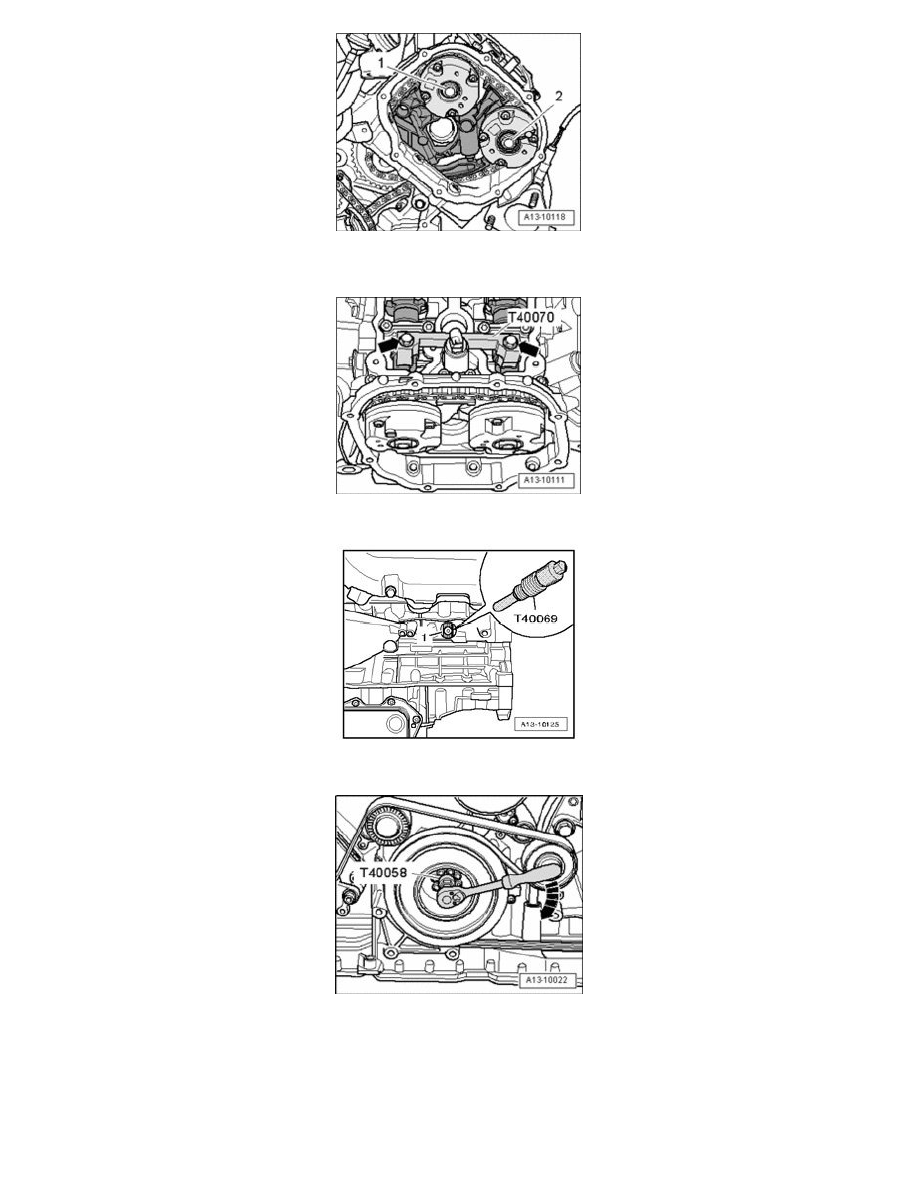

Tighten camshaft bolts - 1 - and - 2 - on right cylinder head to final torque specification.
^
Torque specification: 80 Nm plus an additional 90° (1/4 turn).
-
Remove camshaft locators T40070 on both cylinder heads.
-
Remove crankshaft holder T40069.
-
Using key T40058 turn crankshaft two complete rotations in direction of engine rotation - arrow - until crankshaft stands at TDC again.
Note:
^
If rotated unintentionally beyond TDC, turn back crankshaft again approximately 30° and set to TDC again.
