Grille: Service and Repair
- Make
- Audi
- Model
- A8L
- Engine
- V8-4.2L (BFM)
- Year
- 2004
- Section
- Grille › Service and Repair
Body and FrameService and Repair
/Page-7141001.png)
Grille: Service and Repair

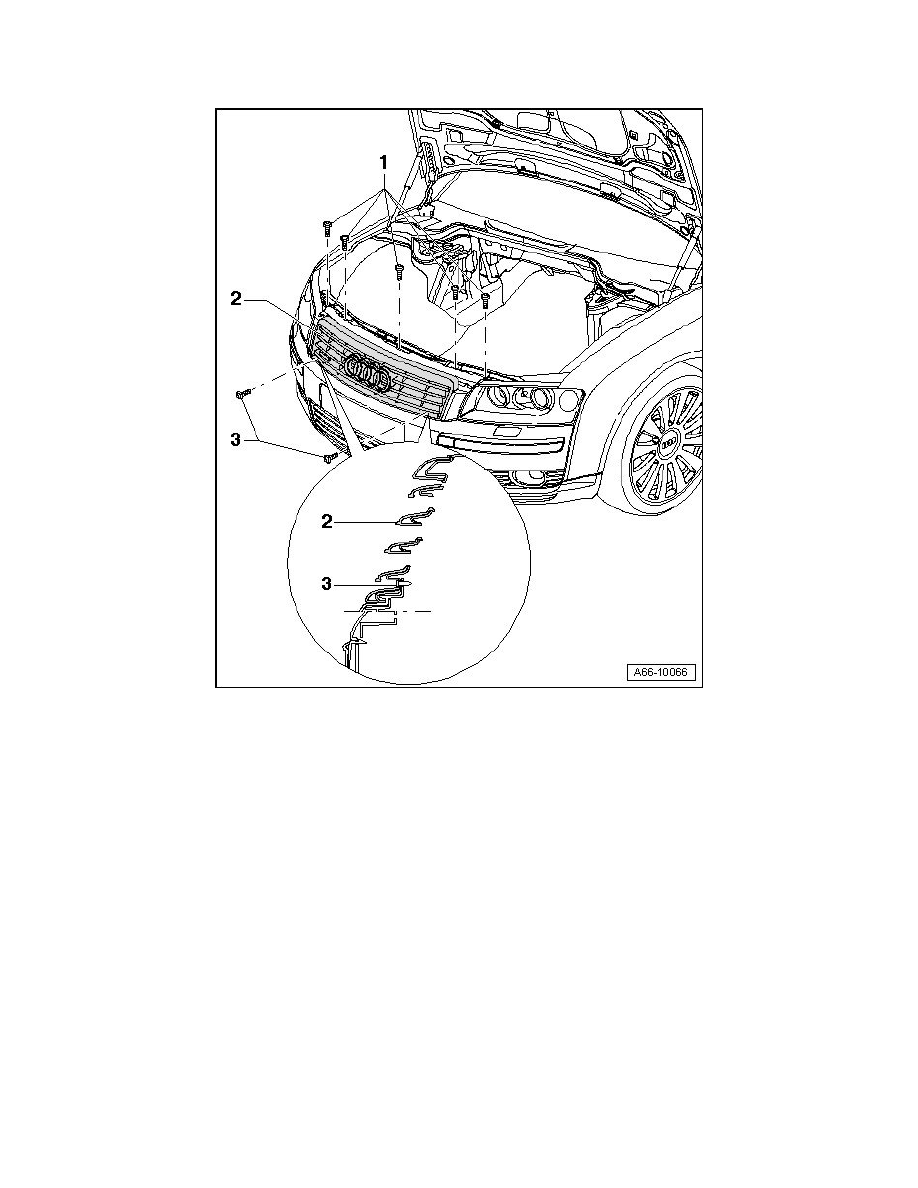

Radiator Grille
1
Bolts
‹› 2 Nm
2
Radiator Grille
‹› To remove, remove bolts - 3 - and - 4 -.
‹› Fold the radiator grille forward and remove it from the bumper.
3
Bolt
‹› 2 Nm
