Toothed Belt: Locations

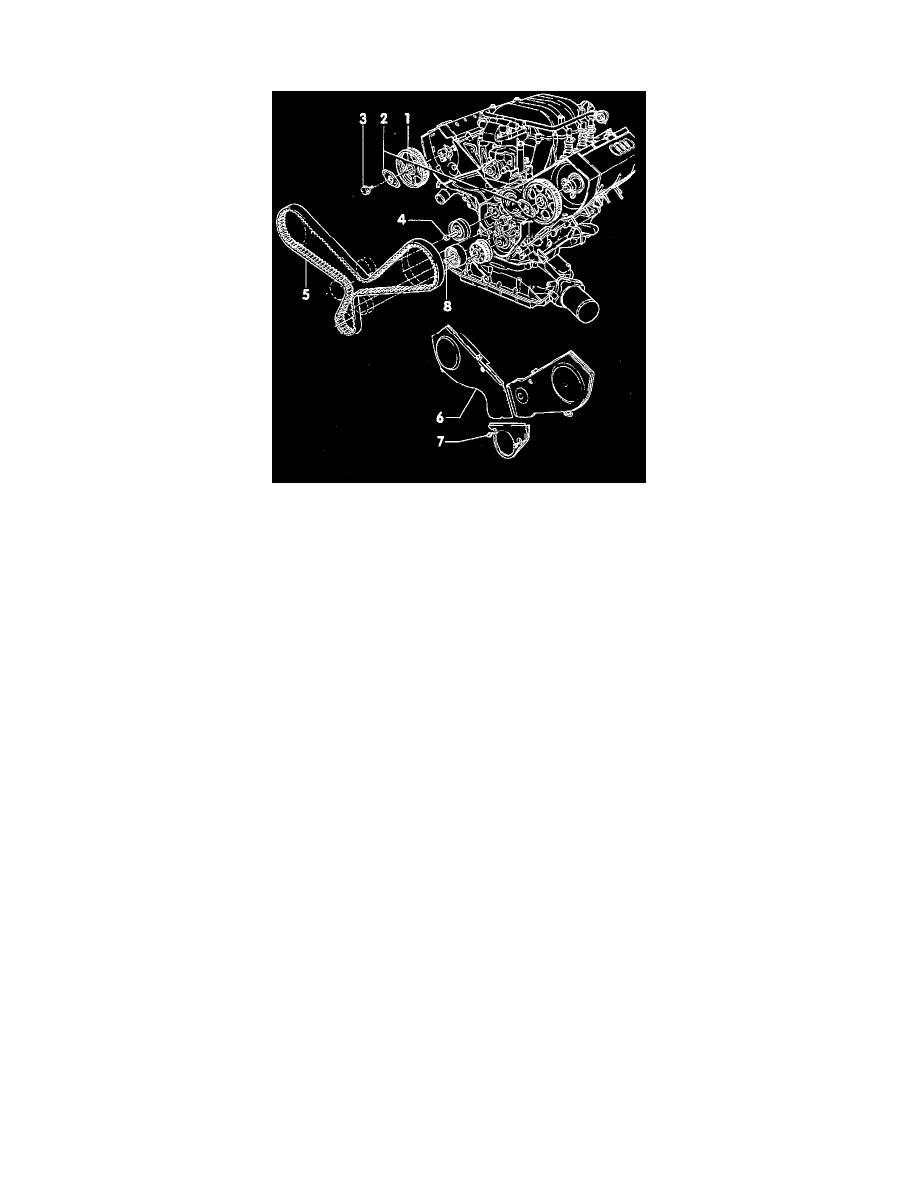

Toothed camshaft drive belt, assembly

CAUTION: Tighten camshaft sprocket bolts after belt tension is adjusted.

Install camshaft holder 3243 before tightening sprocket bolts.

1 - Camshaft sprocket

Removing and installing, refer to Toothed Camshaft Belt Drive, Removing and Installing  See: Service and Repair/Camshaft Drive Belt, Removal
and Installation

2 - Locking plate

Side with inscribed lettering faces camshaft

3 - 30 Nm (22 ft lb) plus additional 1/2-turn (180°)

4 - Toothed belt tensioner 45 Nm (33 ft lb)

5 - Toothed belt

Removing and installing, refer to Toothed Camshaft Belt Drive, Removing and Installing  See: Service and Repair/Camshaft Drive Belt, Removal
and Installation

6 - Toothed belt cover
7 - 10 Nm (7 ft lb)
8 - 25 Nm (18 ft lb)
