Q7 Quattro V6-3.6L (BHK) (2007)
Air Door Actuator / Motor: Service and Repair
Defroster Flap Motor V107, Removing and Installing
Defroster Flap Motor V107, Removing And Installing
NOTE:
-
Defroster Flap Motor Position Sensor G135 is installed in Defroster Flap Motor V107.
-
Motor is secured to a retaining plate, this retaining plate can then only be removed and installed with the instrument panel installed when bolts - C
- are not tightened too tightly. Since on the other hand the connection of the lever on the control motors to the levers on the flaps cannot be
checked with the instrument panel installed, it makes sense to remove the instrument panel and remove and install the control motor with the
retaining plate installed, despite the great amount of work involved to remove and install this control motor.

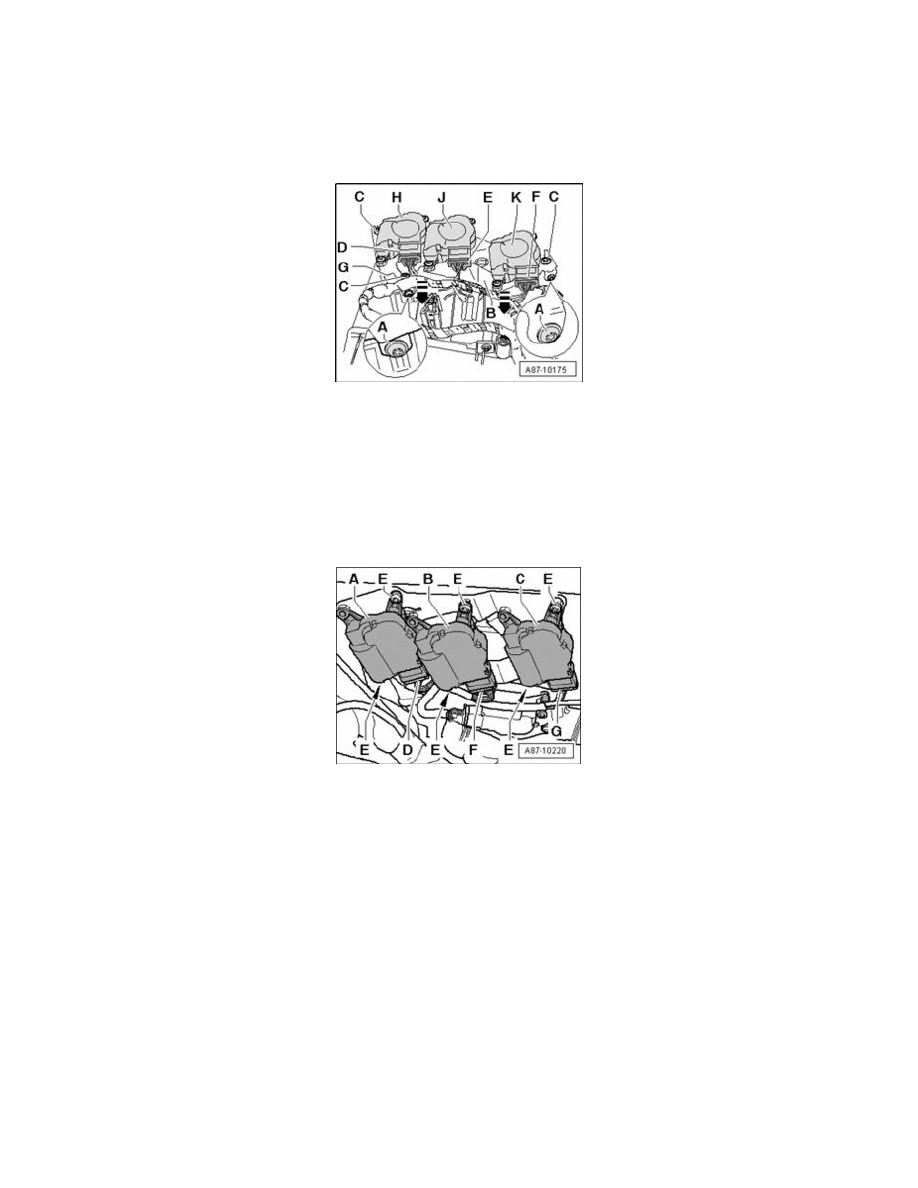

Defroster Flap Motor V107 - Instrument Panel Removed, Removing And Installing
Removing
-
Remove instrument panel.
-
Remove bolts - E - from Defroster Flap Motor V107 - A -, remove motor.
-
Disconnect connector - D - from motor - A -.
NOTE:
-
If necessary, mark the connectors (same version on all control motors) and control motors (different versions Parts Catalog) if it is no longer
desirable to remove only one control motor.
-
Left Center Vent Motor V110 - C - is present only on vehicles with a "Comfort" version A/C system.
Installing
-
Connect connector - D - to motor - A -.
