Q7 Quattro V6-3.6L (BHK) (2007)
/Page-5594002.png)
-

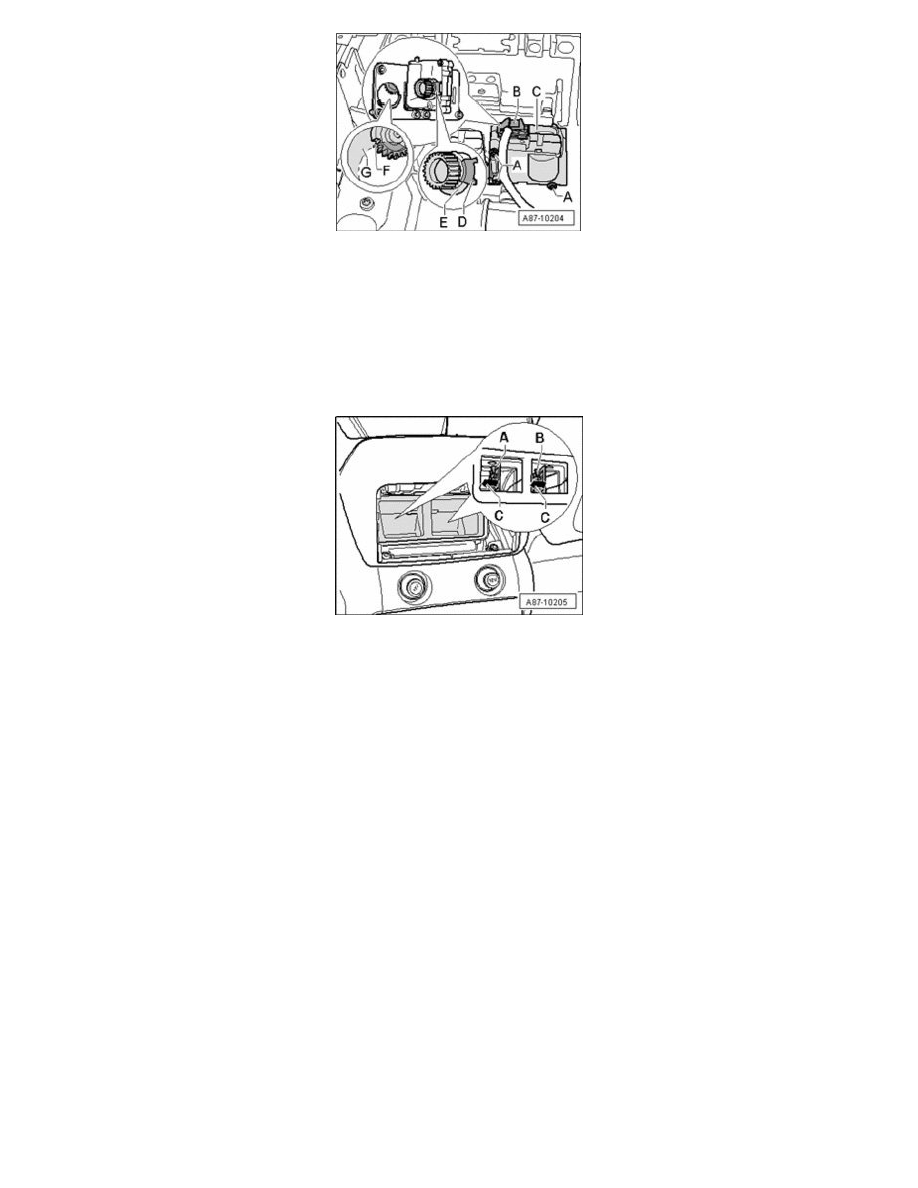

Check position of toothed gear at flap - F -, the first tooth must still be completely visible (the first tooth gap is covered halfway by edge of
opening - G -) and position of toothed gear at control motor - D - (it must be at the stop as depicted).
-
Install control motor - C -.
-
Install bolts - A -.
-
Connect connector - B - to control motor - C -.
-
Check DTC memory of front A/C control head Climatronic Control Module J255 and of Rear A/C Control Head (Climatronic) E265 and erase
DTCs displayed if necessary. Vehicle Diagnosis, Testing and Information System VAS 5051 in "Guided Fault Finding" function.
-
Perform basic setting (and output Diagnostic Test Mode (DTM) if necessary) on the A/C system. Vehicle Diagnosis, Testing and Information
System VAS 5051 in "Guided Fault Finding" function.
-
Check movement of flap - A - e.g. during basic setting (or output Diagnostic Test Mode - DTM-), it must close and open completely.
-
Install the remaining removed components again in reverse order.
