Q7 Quattro V6-3.6L (BHK) (2007)
Air Door Actuator / Motor: Service and Repair
Right B-Pillar/Footwell Shut-Off Flap Motor
Right B-Pillar/Footwell Shut-Off Flap Motor
‹› With Right B-Pillar/Footwell Shut-Off Flap Motor Position Sensor (G328)
Removing
-
Switch ignition off
-
Remove right front seat (front passenger's seat) completely with lower seat frame.
-
Carefully fold rear floor carpet in area of center console aside.
-

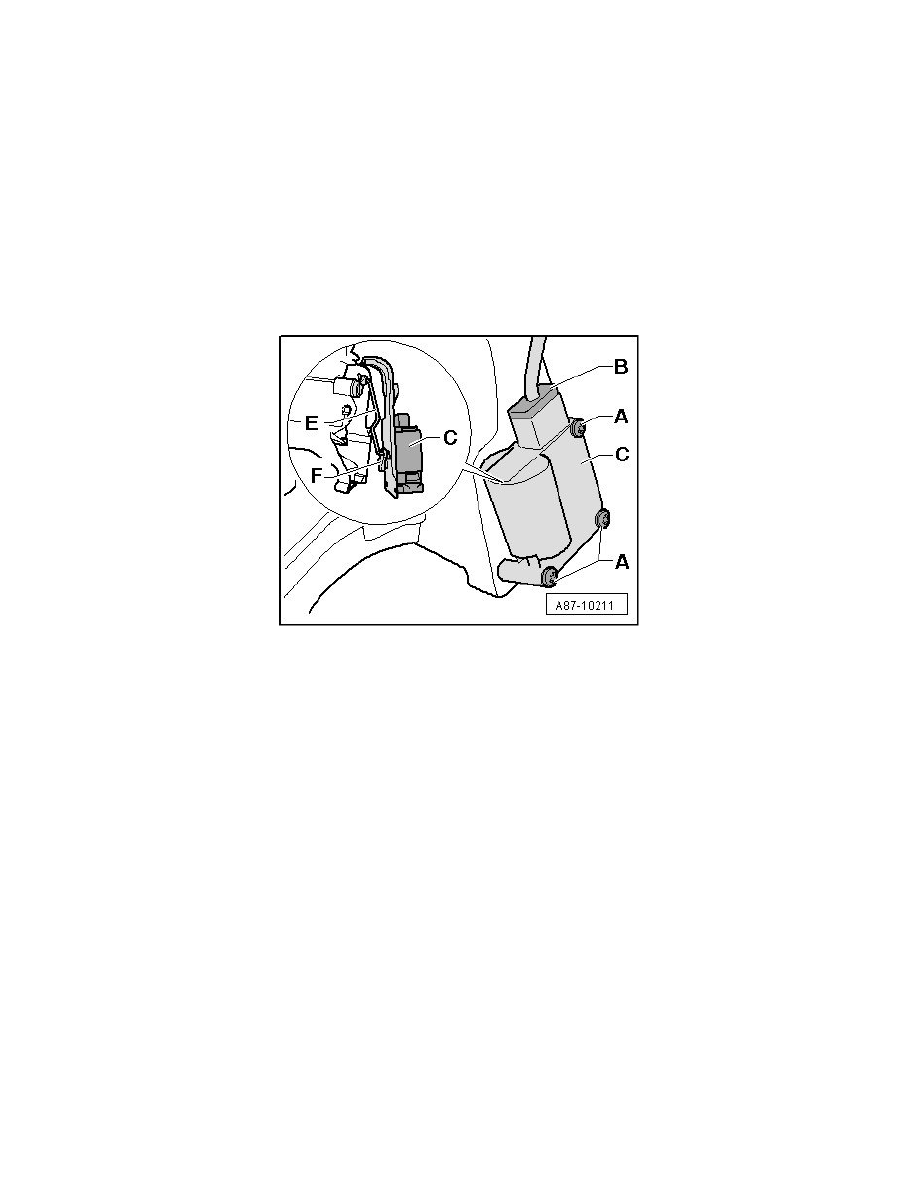

Remove bolts - A -.
-
Disconnect electrical connection from Right B-Pillar/Footwell Shut-Off Flap Motor (V211) - B - and remove control motor - C - with cover - D -.
-
Disengage connecting rod - E - from control motor lever - F -.
Installing
-
Check that connecting rod - E - is installed on proper side.
-
Install the removed components again in reverse order.
-
Check DTC memory of front A/C control head Climatronic Control Module (J255) and of Rear A/C Control Head (Climatronic) (E265) and erase
DTCs displayed if necessary. => Vehicle Diagnosis, Testing and Information System VAS 5051 in "Guided Fault Finding" function.
-
Perform basic setting (and output Diagnostic Test Mode (DTM) if necessary) on the A/C system. => Vehicle Diagnosis, Testing and Information
System VAS 5051 in "Guided Fault Finding" function.
