Drive Belt: Locations

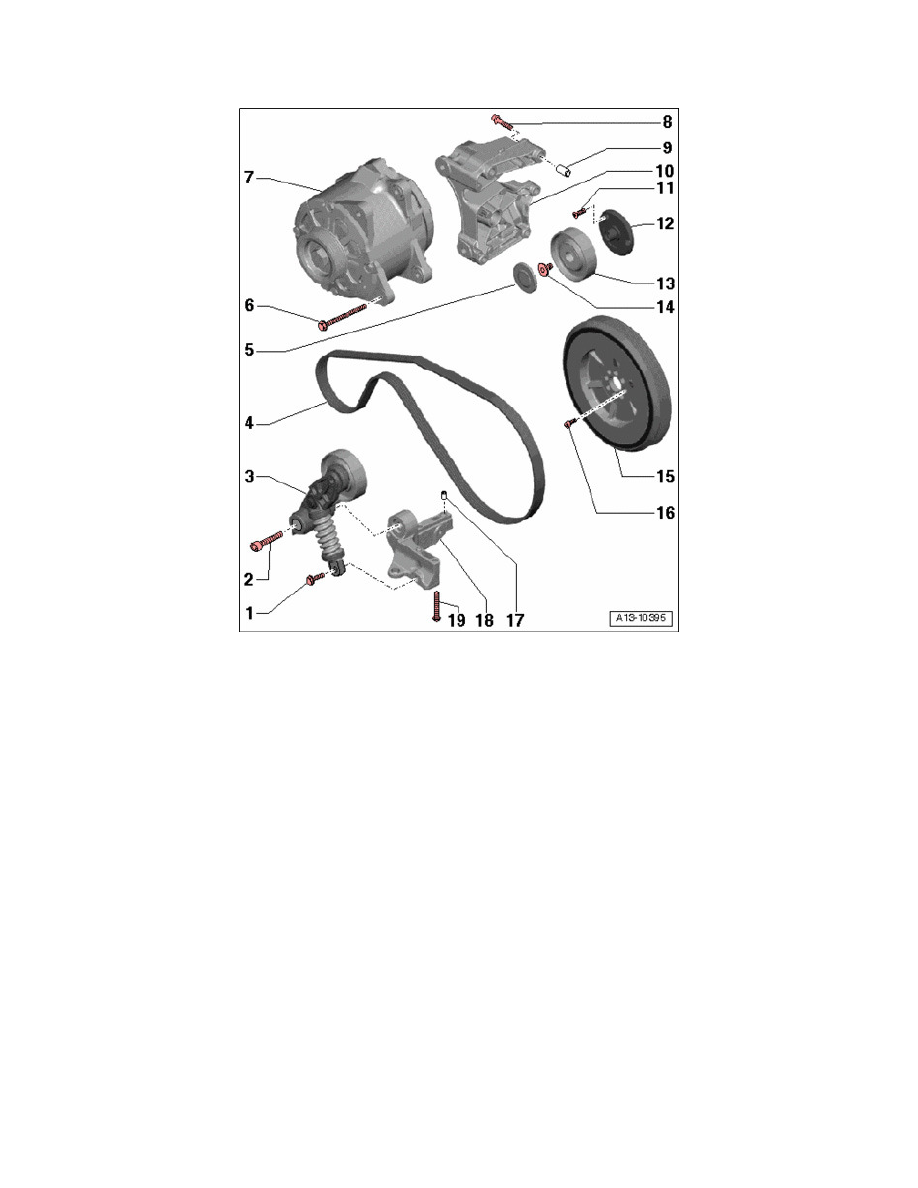

Ribbed belt drive for generator, component overview
1 - 22 Nm
2 - 55 Nm
3 - Tensioning device for ribbed belt
4 - Ribbed belt
^
Check for wear
^
Do not kink
^
Before removing, mark direction of rotation using chalk or felt-tip marker. A reversed turning direction can cause damage to ribbed belt under
operating conditions.
^
When installing, make sure it is seated correctly on the pulleys
5 - Cover cap
6 - 22 Nm
7 - Generator
8 - M8, 22 Nm; M10, 46 Nm
9 - Alignment bushing
^
For generator bracket
^
2 pieces
10 - Generator bracket
11 - 9 Nm
12 - Bracket
^
For idler pulley
13 - Idler roller for ribbed belt
14 - 22 Nm
15 - Vibration damper
16 - Bolt
