S6 V8-4.2L (BBD) (2004)
/Page-4998001.png)
Firewall: Service and Repair
51 58 50 00 Plenum Chamber - Renewal

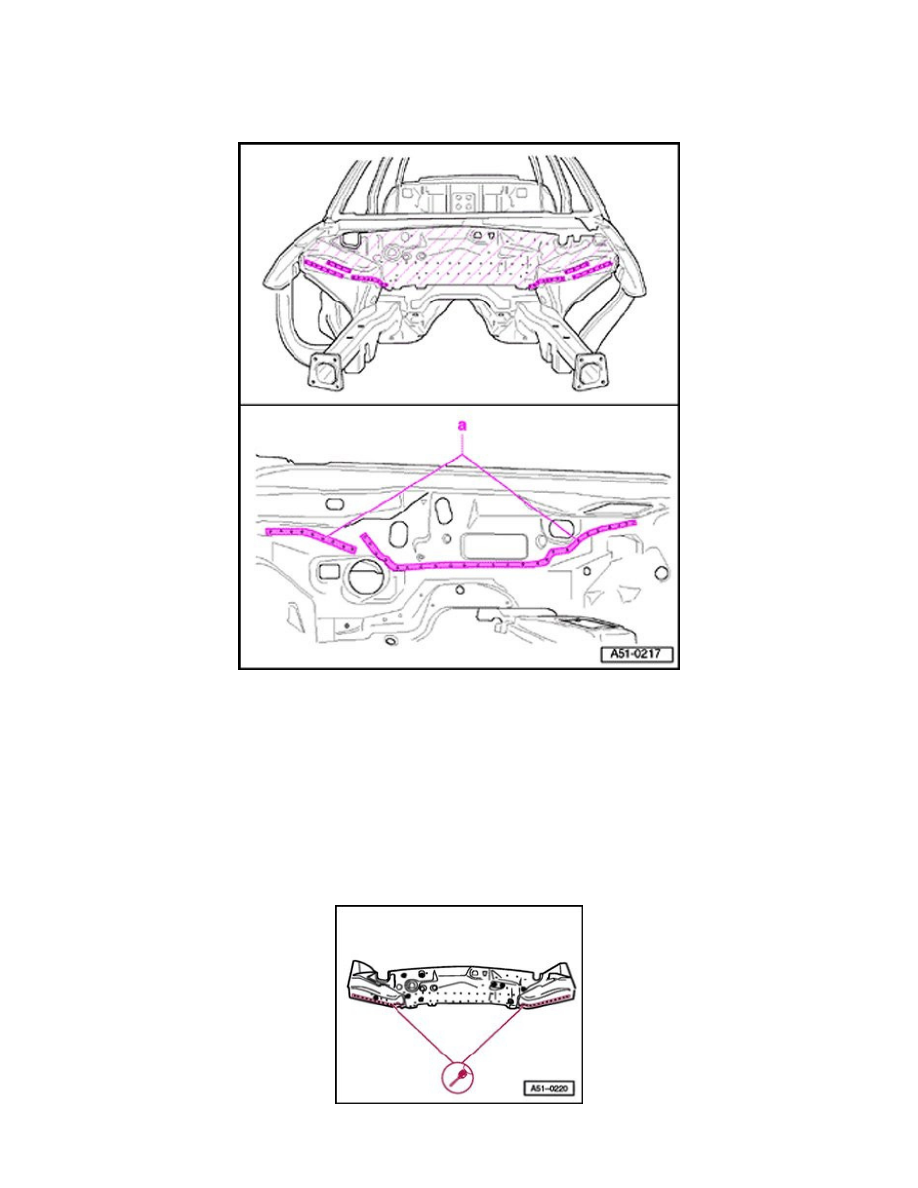

Cutting Locations
-
Cut-out reinforcement for wheel housing
-
Separate original joint.
-
Drill out spot welds - a - from inside.
-
Drill additional holes for SG plug weld seam.
-
Take off part.
-
Remove adhesive remains with knife and scraper.
Replacement parts
-
Plenum chamber
-
Reinforcing plate
Preparing new part
-
Drill 7 mm holes for SG plug weld seam.
