3 Series E46 M3 (S54) COUPE
51 11 001
Replacing front bumper (M3)
Necessary preliminary tasks:
•
Remove both fog lamp inserts (complete)
•
Remove washer reservoir for windshield washer system

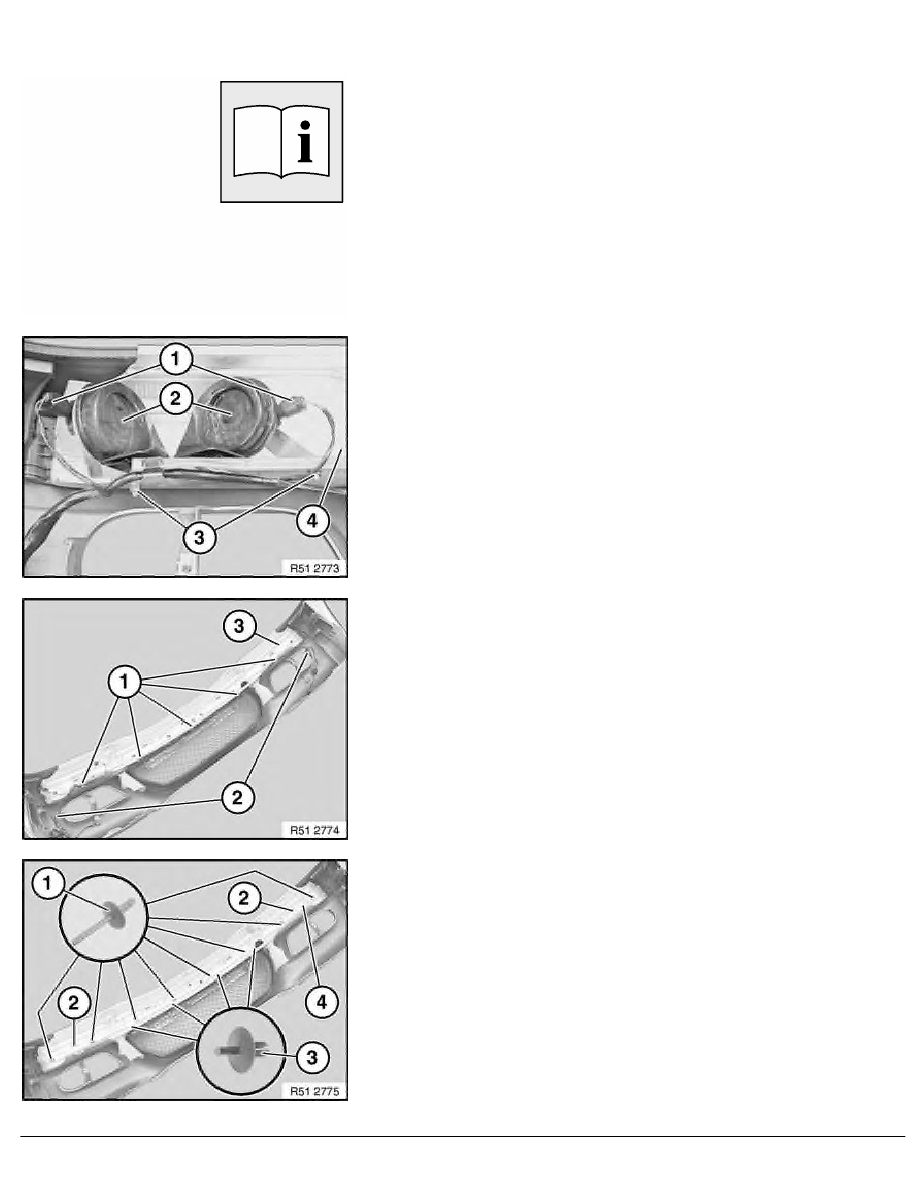

Replacing front bumper carrier:
Disconnect plug connections (1).
Release nuts (3) and remove fanfare horns (2) from carrier (4).
Lever retainers (1) with wiring harness (2) out of carrier (3).
Release plastic blind rivets (1) and expansion rivets (3).
Lever out catches (2) and detach bumper carrier (4).
